- Артикул:NY512-1400-1XX213C6X
- 99
- Communication port(s):EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
- Controller type:Machine Control
- Cooling method:Active cooling (fan)
- Degree of protection (IP):IP20
- Expansion slot:1 x PCIe slot (X4 lanes)
- IPC type:Box PC
- Material housing:Aluminium, black
- Max. number of motion axes:32 axes
- Memory:8 GB RAM (non ECC)
- Modular port:NYML
- Operating system:WES 7 (64 bits)
- Operating temperature:0-55 °C
- Processor family:Intel® Core™ i7
- Processor specification:4700EQ (2.4 GHz)
- Product Depth (unpacked):195 mm
- Product Height (unpacked):89 mm
- Product Weight (unpacked):3900 g
- Product Width (unpacked):282 mm
- Storage:320 GB HDD
- Supply voltage DC:20.4-28.8 V
- Video output:DVI-I

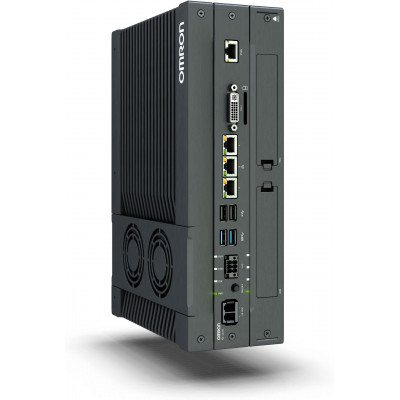

Контроллер станка для 32 осей, промышленный блочный ПК с процессором Intel® Core™ i7-4700EQ, 8 ГБ DRAM (без ECC), жесткий диск 320 ГБ, WES 7 (64-разрядный), слот PCIe, порт NYML
