- Производитель:
- Артикул:NY512-1300-1XX443P6X
- 99
- Communication port(s):EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
- Controller type:Machine Control
- Cooling method:Active cooling (fan)
- Degree of protection (IP):IP20
- Expansion slot:1 x PCIe slot (X4 lanes)
- IPC type:Box PC
- Material housing:Aluminium, black
- Max. number of motion axes:16 axes
- Memory:8 GB RAM (non ECC)
- Modular port:NYML
- Operating system:Windows 10 IoT Enterprise 2019 LTSB - 64 bit
- Operating temperature:0-55 °C
- Processor family:Intel® Core™ i5
- Processor specification:7440EQ (2.9 GHz)
- Product Depth (unpacked):195 mm
- Product Height (unpacked):89 mm
- Product Weight (unpacked):3800 g
- Product Width (unpacked):282 mm
- Storage:1 TB SSD 3DTLC
- Supply voltage DC:20.4-28.8 V
- Video output:DVI-I

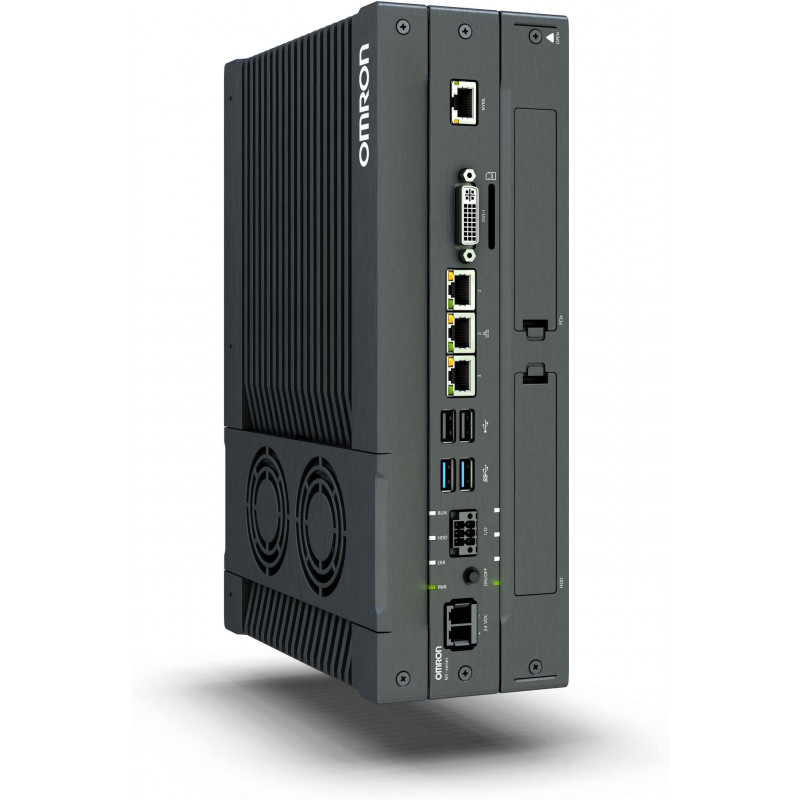

Контроллер станка для 16 осей, промышленный блочный ПК с процессором Intel® Core™ i5-7440EQ, 8 ГБ ОЗУ (без ECC), SSD 3D TLC емкостью 1 ТБ, Windows 10 IoT Enterprise 2019 LTSC — 64 бит, порт NYML
