- Производитель:
- Артикул:G3PJ-525B DC12-24
- 99
- Application:Power control
- Control current max.:7 mA
- Isolation:Phototriac
- Maximum operating temperature:80 °C
- Minimum operating temperature:-30 °C
- Mounting method:DIN rail/screw
- Must operate voltage max.:9.6 V
- Must release voltage min.:1 V
- Number of phases:1
- Number of poles:1
- Operating voltage range, AC:75-528 V
- Permissible I²t value:6600 A²s
- Product Depth (unpacked):100 mm
- Product Height (unpacked):100 mm
- Product Width (unpacked):22.5 mm
- Rated load current Close mounting:25 A
- Rated operation current Ie at AC-1:27 A
- Rated operational voltage, AC:100-480 V
- Supply voltage DC:12-24 V
- Terminal:Screw

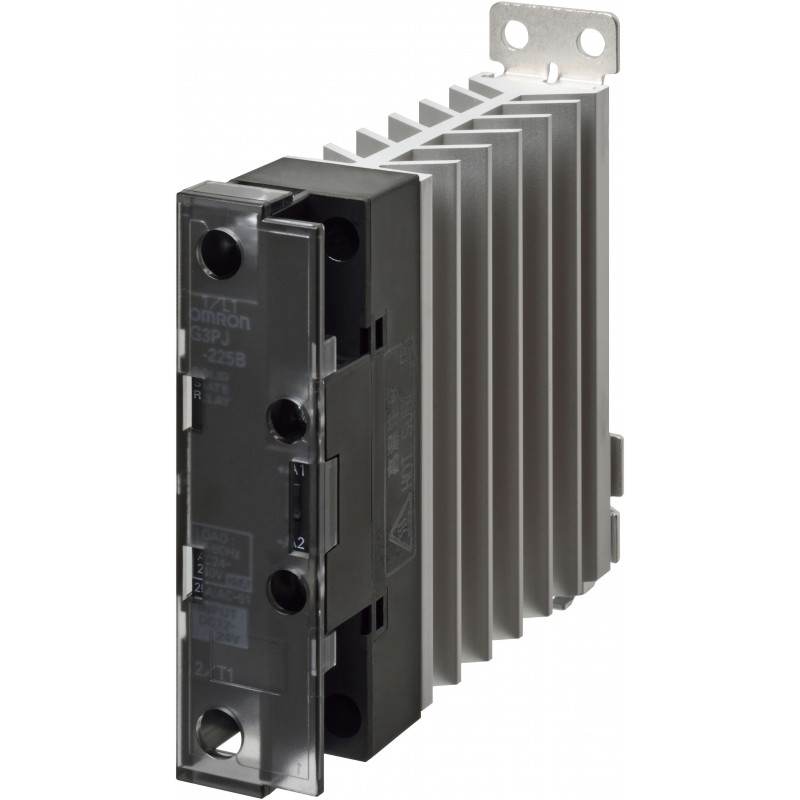

Твердотельное реле, 1 фаза, 27 А, 100–480 В переменного тока, с радиатором, монтаж на DIN-рейку, входное напряжение 12–24 В постоянного тока
