- Производитель:
- Артикул:G3NA-475B-UTU-2 5-24VDC
- 99
- Application:ON/OFF control
- Maximum operating temperature:80 °C
- Minimum operating temperature:-30 °C
- Mounting method:DIN rail/screw
- Must operate voltage max.:4 V
- Must release voltage min.:1 V
- Number of phases:1
- Operating voltage range, AC:180-528 V
- Product Depth (unpacked):30 mm
- Product Height (unpacked):58 mm
- Product Width (unpacked):43 mm
- Rated operation current Ie at AC-1:7 A
- Rated operational voltage, AC:200-480 V
- Supply voltage DC:5-24 V
- Terminal:Screw

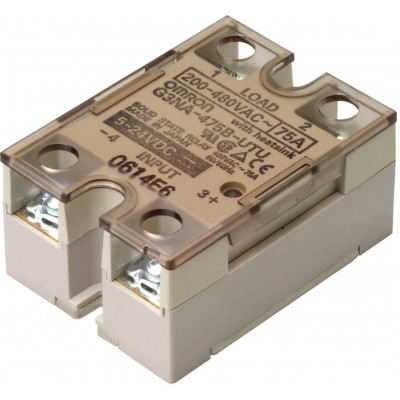

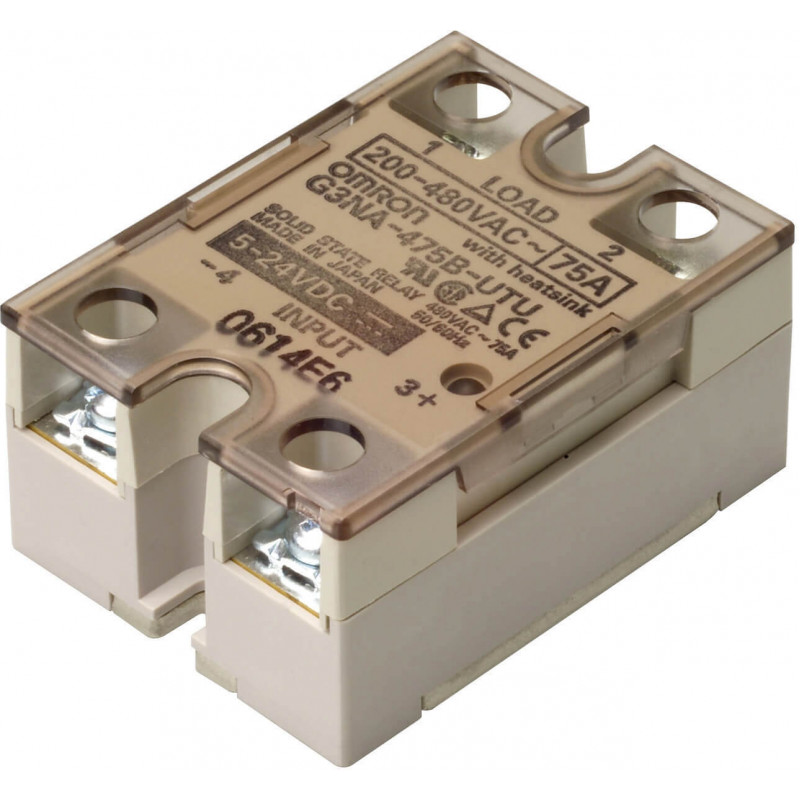

Твердотельное реле, поверхностного монтажа, пересечение нуля, 1-полюсное, 75 А, 200–480 В переменного тока
