- Производитель:
- Артикул:G3PE-545B 12-24VDC
- 99
- Applicable heater capacity (AC1: resistive load):18 kW
- Application:ON/OFF control
- Control current max.:10 mA
- Isolation:Phototriac
- Maximum operating temperature:80 °C
- Minimum operating temperature:-30 °C
- Mounting method:DIN rail/screw
- Must operate voltage max.:9.6 V
- Must release voltage min.:1 V
- Number of phases:1
- Number of poles:1
- Operating voltage range, AC:180-528 V
- Permissible I²t value:6600 A²s
- Product Depth (unpacked):100 mm
- Product Height (unpacked):100 mm
- Product Width (unpacked):44.5 mm
- Rated operation current Ie at AC-1:45 A
- Rated operational voltage, AC:200-480 V
- Supply voltage DC:12-24 V
- Terminal:Screw

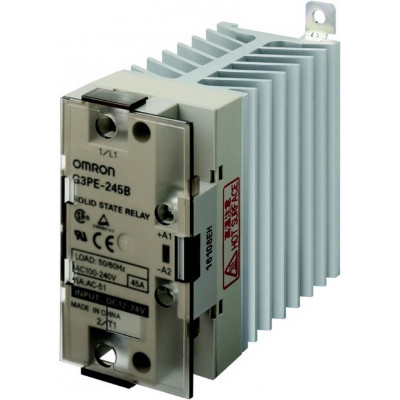

Твердотельное реле, 1-полюсное, монтаж на DIN-рейку, 45 А, 528 В переменного тока макс.
