- Производитель:
- Артикул:G3PF-525B-STB 24VDC
- 99
- Application:ON/OFF control
- Control current max.:10 mA
- Functions:HB/HS alarm for 3-phase heaters
- Isolation:Phototriac
- Maximum operating temperature:60 °C
- Minimum operating temperature:-20 °C
- Mounting method:DIN rail/screw
- Must operate voltage max.:9.6 V
- Must release voltage min.:1 V
- Number of phases:1
- Operating voltage range, AC:180-528 V
- Rated operation current Ie at AC-1:25 A
- Rated operational voltage, AC:200-480 V
- Supply voltage DC:9.6-26.4 V
- Terminal:Screw

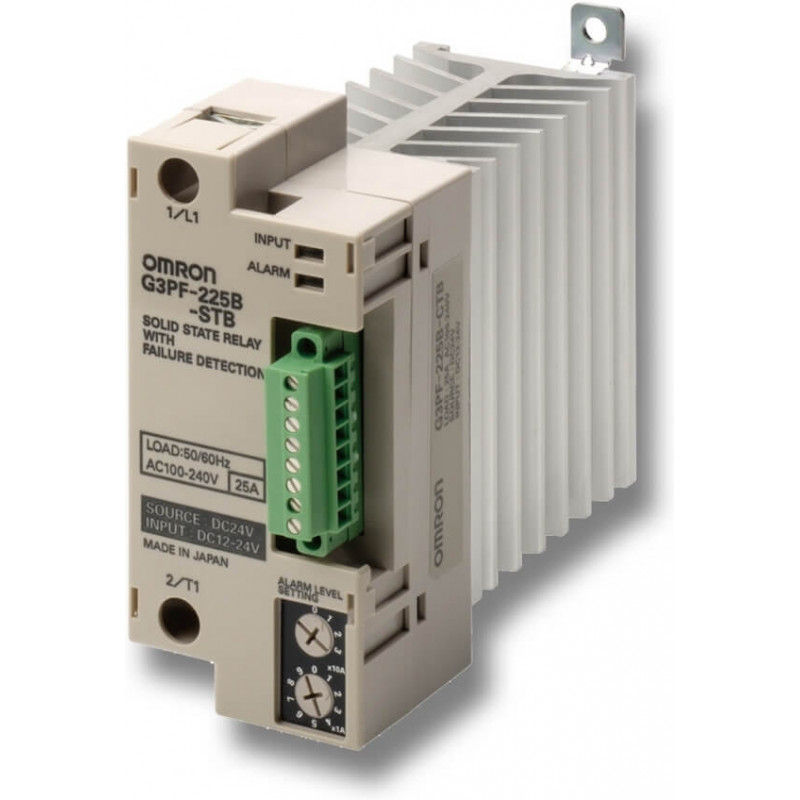

Твердотельное реле 25А, 200-480В переменного тока, со встроенным трансформатором тока, винтовыми клеммами, 2 сигнализацией
