- Производитель:
- Артикул:SX-D6022-EVA4
- 99
- Communication option(s):Bluetooth, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MODBUS Slave, MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave, Serial RS-232C, Serial RS-485
- Compatible motor type:Induction or asynchronous motor, Permanent magnet motor
- Degree of protection (IP):IP54
- Drive control method:V/f control
- Drive supply voltage:690 V three phase
- Max. motor output at constant torque (HD):18.5 kW
- Max. motor output at variable torque (ND):22 kW
- Product Depth (unpacked):314 mm
- Product Height (unpacked):512 mm
- Product Weight (unpacked):17000 g
- Product Width (unpacked):178 mm
- Regenerative solutions:As inverter option

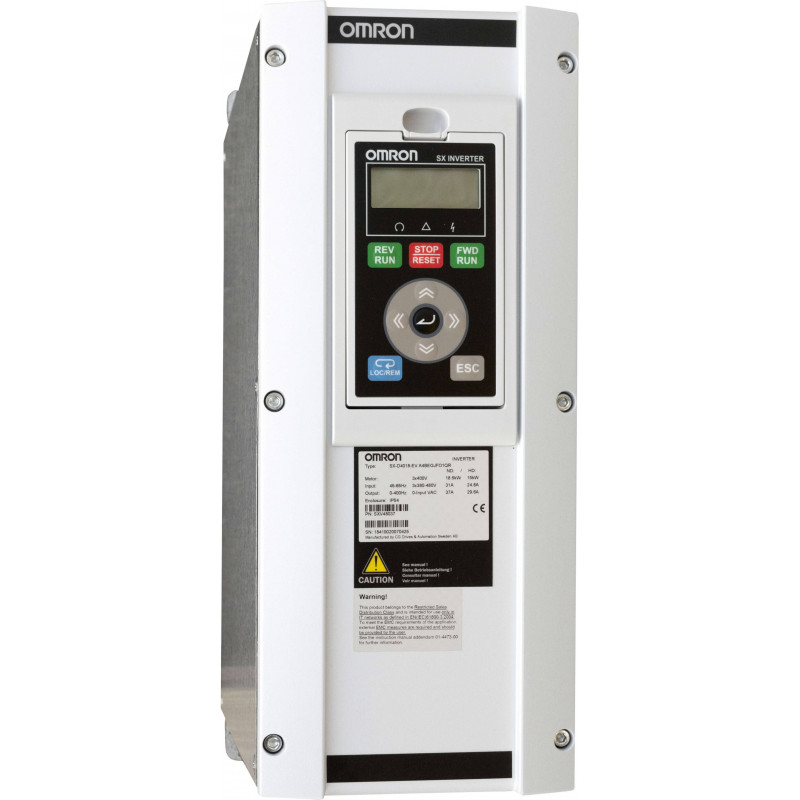

Инвертор SX IP54, 22 кВт, 3~ 690 В переменного тока, привод V/f, встроенный фильтр, макс. выходная частота. 400 Гц
