- Производитель:
- Артикул:Q2V-AB012-AAA
- 97
- Communication option(s):Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
- Communication port(s):MODBUS Slave, Serial RS-485, USB
- Compatible motor type:Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor
- Degree of protection (IP):IP20
- Drive control method:Open loop V/f, Open loop vector
- Drive supply voltage:230 V single phase
- Max. motor output at constant torque (HD):2.2 kW
- Max. motor output at variable torque (ND):3.0 kW
- Product Depth (unpacked):203 mm
- Product Height (unpacked):128 mm
- Product Weight (unpacked):2700 g
- Product Width (unpacked):140 mm
- Regenerative solutions:As inverter option

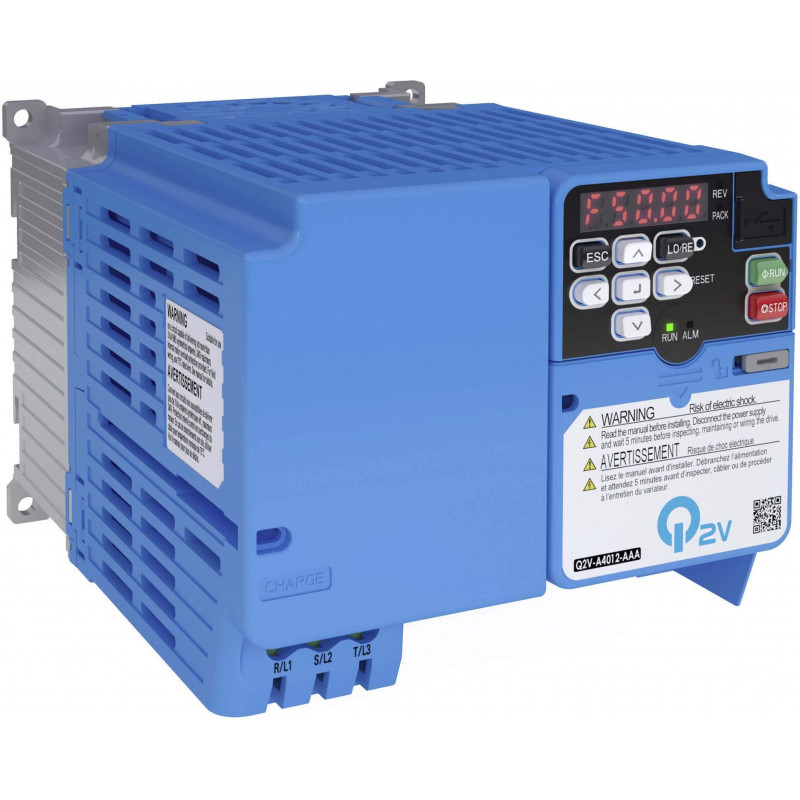

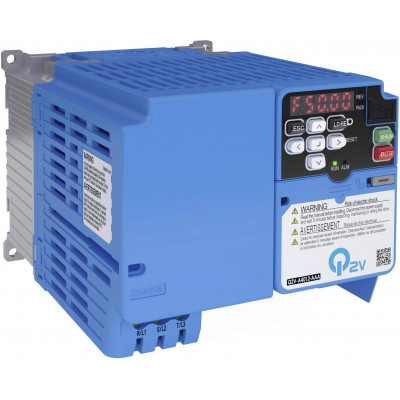

Инвертор Q2V, 1x200 В, ND: 12,2 А/3,0 кВт, HD: 11,0 А/2,2 кВт, IP20, класс фильтра ЭМС C1, макс. выходная частота. 590 Гц
