- Производитель:
- Артикул:Q2V-A2042-AAA
- 99
- Communication option(s):Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
- Communication port(s):MODBUS Slave, Serial RS-485, USB
- Compatible motor type:Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor
- Degree of protection (IP):IP20
- Drive control method:Open loop V/f, Open loop vector
- Drive supply voltage:230 V three phase
- Max. motor output at constant torque (HD):7.5 kW
- Max. motor output at variable torque (ND):11 kW
- Product Depth (unpacked):196 mm
- Product Height (unpacked):260 mm
- Product Weight (unpacked):4100 g
- Product Width (unpacked):140 mm
- Regenerative solutions:As inverter option

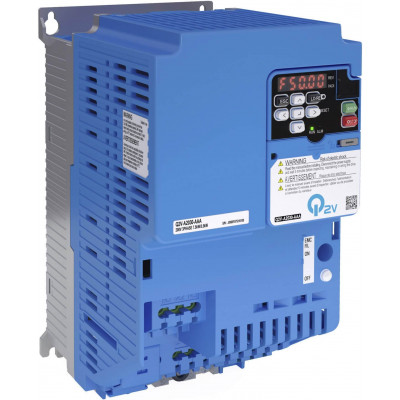

Инвертор Q2V 200 В, ND: 42,0 А / 11,0 кВт, HD: 33,0 А / 7,5 кВт, со встроенным фильтром ЭМС C3, макс. выходная частота. 590 Гц
