- Производитель:
- Артикул:Q2A-A4675-AAA
- 99
- Communication option(s):Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
- Communication port(s):MODBUS Slave, Serial RS-485, USB
- Compatible motor type:Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor
- Degree of protection (IP):IP20
- Drive control method:Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector
- Drive supply voltage:400 V three phase
- Max. motor output at constant torque (HD):315 kW
- Max. motor output at variable torque (ND):355 kW
- Product Depth (unpacked):480 mm
- Product Height (unpacked):1140 mm
- Product Weight (unpacked):207000 g
- Product Width (unpacked):510 mm
- Regenerative solutions:As inverter option

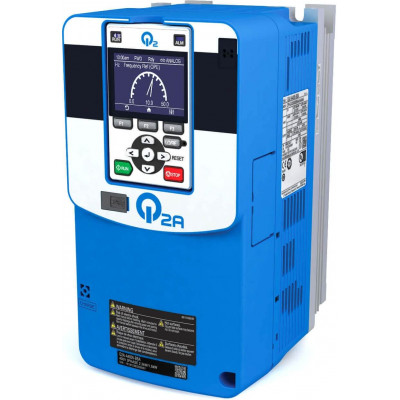

Инвертор Q2A, 400 В, ND: 675 А/355 кВт, HD: 605 А/315 кВт, IP20, макс. выходная частота. 590 Гц
