• Производитель:
    Omron
  • Артикул:
    Q2A-A4012-AAA
  • Communication option(s):
    Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
  • Communication port(s):
    MODBUS Slave, Serial RS-485, USB
  • Compatible motor type:
    Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor
  • Degree of protection (IP):
    IP20
  • Drive control method:
    Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector
  • Drive supply voltage:
    400 V three phase
  • Max. motor output at constant torque (HD):
    3.7 kW
  • Max. motor output at variable torque (ND):
    5.5 kW
  • Product Depth (unpacked):
    211 mm
  • Product Height (unpacked):
    260 mm
  • Product Weight (unpacked):
    3900 g
  • Product Width (unpacked):
    140 mm
  • Regenerative solutions:
    As inverter option
По запросу
Доступно к заказу

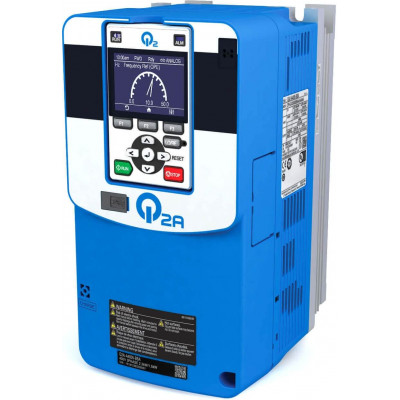

Инвертор Q2A, 400 В, ND: 11,9 А/5,5 кВт, HD: 9,2 А/3,70 кВт, IP20, макс. выходная частота. 590 Гц
