- Производитель:
- Артикул:Q2A-A2012-AAA
- 99
- Communication option(s):Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
- Communication port(s):MODBUS Slave, Serial RS-485, USB
- Compatible motor type:Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor
- Degree of protection (IP):IP20
- Drive control method:Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector
- Drive supply voltage:230 V three phase
- Max. motor output at constant torque (HD):2.2 kW
- Max. motor output at variable torque (ND):3.0 kW
- Product Depth (unpacked):176 mm
- Product Height (unpacked):260 mm
- Product Weight (unpacked):3200 g
- Product Width (unpacked):140 mm
- Regenerative solutions:As inverter option

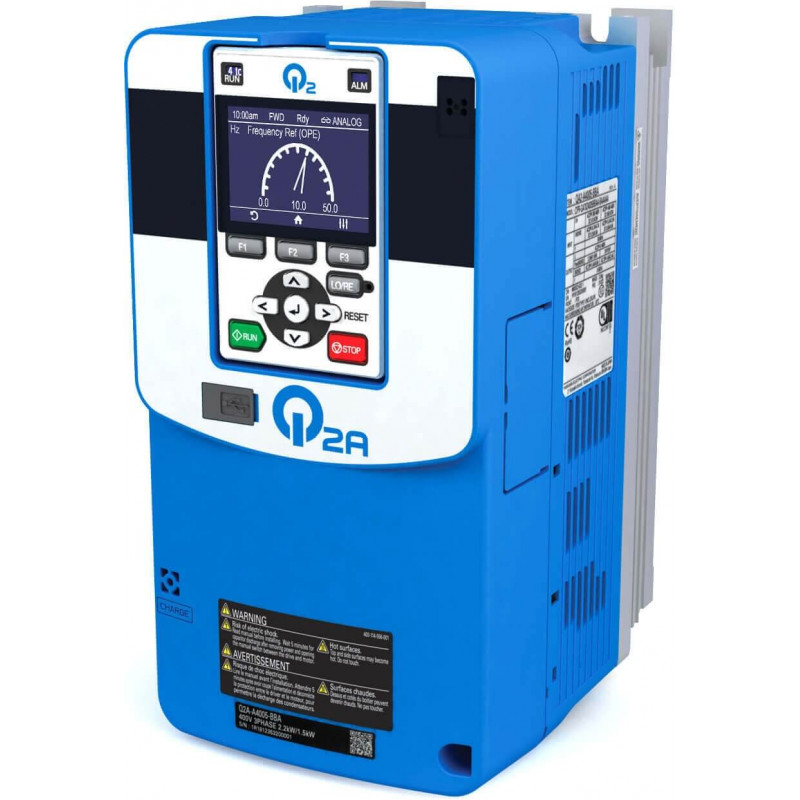

Инвертор Q2A, 200 В, ND: 12,2 А/3,0 кВт, HD: 11 А/2,2 кВт, IP20, макс. выходная частота. 590 Гц
