- Производитель:
- Артикул:OS32C-SP1-DM
- 99
- Ambient temperature:-10-50 °C
- Cable entry direction:Side
- Communication port(s):EtherNet/IP
- Connection method:Pigtail connector
- Degree of protection (IP):IP65
- Detection capability:70 mm
- Height of sensor:105 mm
- Key features:Configurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoring
- Laser protection class:Class 1
- Max. output current at protected output:250 mA
- Maximum safety range:3 m
- Maximum warning range:10 m
- Number of protected semiconductor outputs:2
- Number of safety fields:140
- Number of semiconductor outputs with signalling function:2
- Overall length:143 mm
- Response time:80 ms
- Scan angle:270 °
- Scanning interval:0.4 Hz
- Supply voltage DC:16.8-30 V
- Type of protection:Hand protection
- Type of safety according to IEC 61496-1:3
- Type of switching output of the OSSD:PNP
- Voltage type:DC
- Wavelength of the sensor:905 nm
- Width of sensor:105 mm

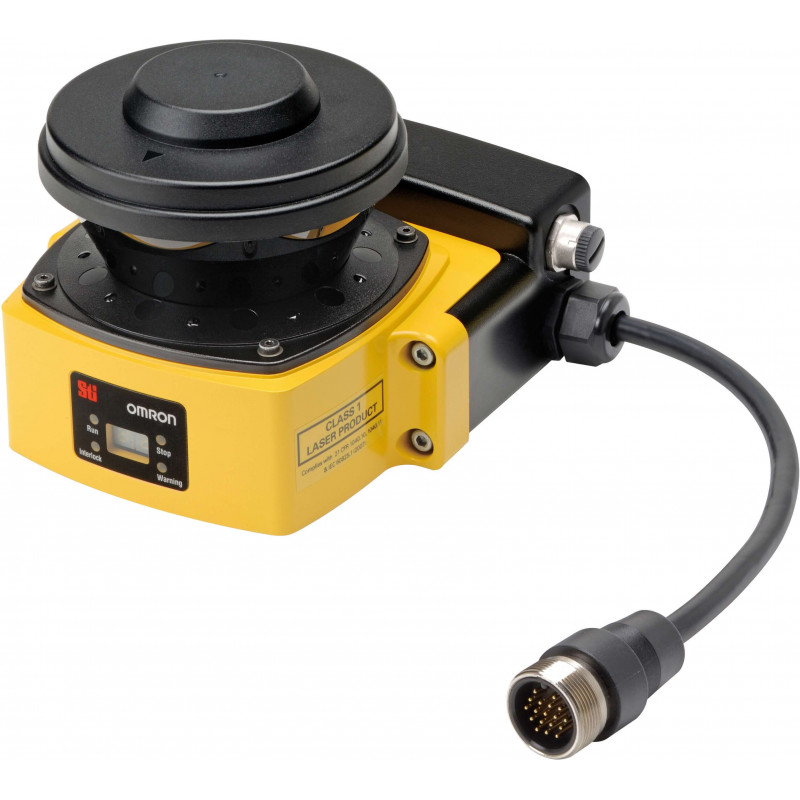

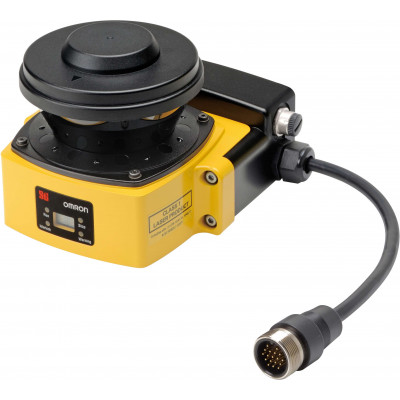

Лазерный сканер безопасности, измерения и EtherNet/IP, радиус безопасности 3 м, зона предупреждения 10 м, PLd & Cat 3 (ISO 13849-1), Ethernet, 24 В постоянного тока, боковой вывод кабеля
