• Производитель:
    Omron
  • Артикул:
    NYP2C-20460-12WC1000
  • Built-in depth:
    63 mm
  • Communication port(s):
    EtherNet/IP, Ethernet TCP/IP, USB
  • Cooling method:
    Passive cooling (fanless)
  • Degree of protection (IP), front side:
    IP65
  • Display ratio:
    16:10
  • Expansion slot:
    No Expansion
  • Height of panel cutout:
    216 mm
  • Height of the front:
    234 mm
  • Material housing:
    Aluminium, black
  • Max. number of motion axes:
    0 axes
  • Memory:
    4 GB RAM (non ECC)
  • Modular port:
    No Port
  • Mounting method:
    Build-in
  • Number of pixels, horizontal:
    1280
  • Number of pixels, vertical:
    800
  • Operating system:
    Windows 10 IoT Enterprise 2019 LTSB - 64 bit
  • Operating temperature:
    0-55 °C
  • Processor family:
    Intel® Celeron®
  • Processor specification:
    3965U (2.2 GHz)
  • Product Weight (unpacked):
    4700 g
  • Screen diagonal:
    12.1 in
  • Storage:
    128 GB CFast
  • Supply voltage DC:
    20.4-28.8 V
  • Touchscreen technology:
    Projected capacitive
  • Type of display:
    TFT
  • Video output:
    DVI-D
  • Width of panel cutout:
    314 mm
  • Width of the front:
    332 mm
По запросу
Доступно к заказу

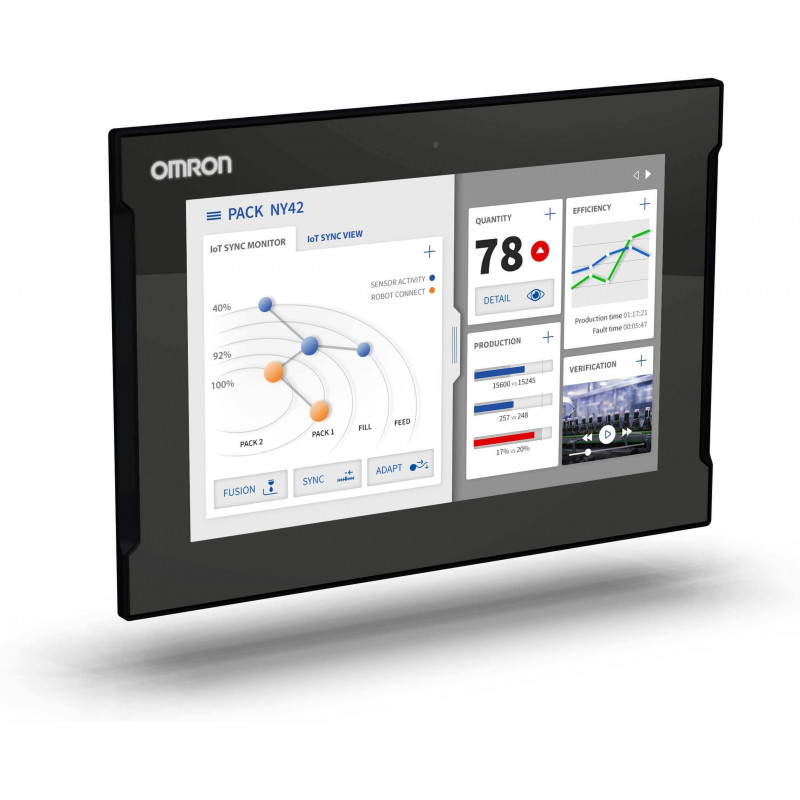

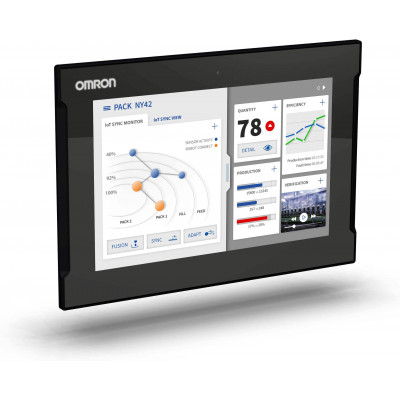

Промышленный панельный ПК с процессором Intel® Celeron® 3965U, 4 ГБ DRAM (без ECC), CFast iMLC 128 ГБ, WIN 10 IoT 2019 (64-разрядная версия), без расширения. слоты, без опции I/F, 12,1 дюйма; (1280x800) дисплей с емкостным сенсорным экраном встроенного типа
