- Производитель:
- Артикул:NY532-1500-013443600
- 99
- Communication port(s):EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
- Controller type:Machine Control
- Cooling method:Active cooling (fan)
- Degree of protection (IP), front side:IP65
- Display ratio:16:9
- Expansion slot:No Expansion
- Height of panel cutout:285 mm
- Height of the front:303 mm
- IPC type:Panel PC
- Material housing:Aluminium, black
- Max. number of motion axes:64 axes
- Memory:8 GB RAM (non ECC)
- Modular port:No Port
- Mounting method:Build-in
- Number of pixels, horizontal:1920
- Number of pixels, vertical:1080
- Operating system:Windows 10 IoT Enterprise 2019 LTSB - 64 bit
- Operating temperature:0-55 °C
- Processor family:Intel® Core™ i5
- Processor specification:7440EQ (2.9 GHz)
- Product Weight (unpacked):7000 g
- Screen diagonal:18.5 in
- Storage:128 GB CFast MLC
- Supply voltage DC:20.4-28.8 V
- Touchscreen technology:Projected capacitive
- Type of display:TFT
- Video output:DVI-I
- Width of panel cutout:463 mm
- Width of the front:481 mm

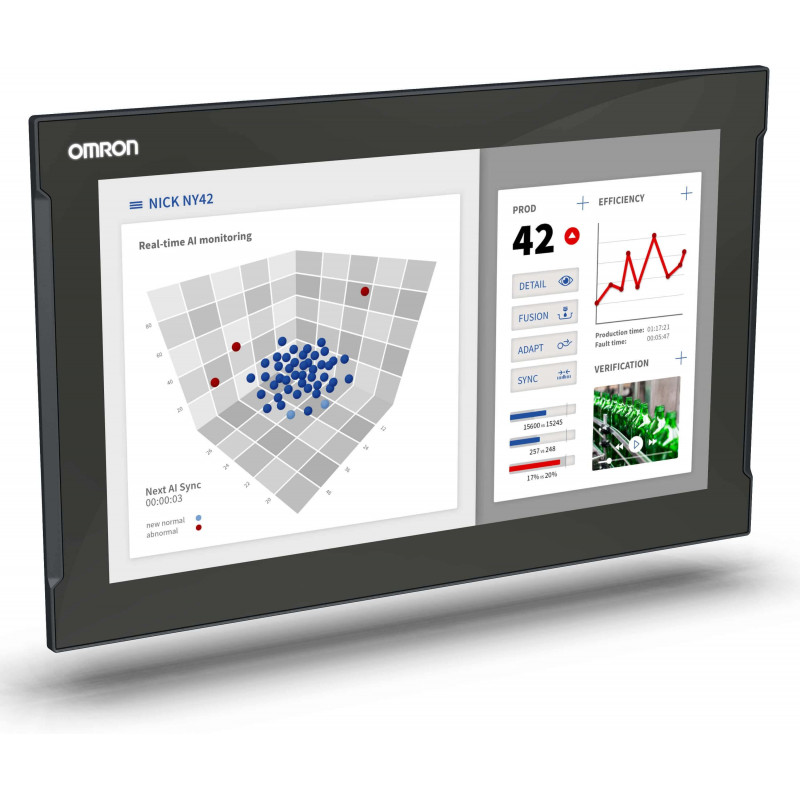

Контроллер станка для 64 осей, промышленный панельный ПК с процессором Intel® Core™ i5-7440EQ, 8 ГБ ОЗУ (без ECC), 128 ГБ CFast MLC, Windows 10 IoT Enterprise 2019 LTSC — 64 бит, 18,5 дюйма; (1920x1080) дисплей с емкостным сенсорным экраном
