• Производитель:
    Omron
  • Артикул:
    NY532-1300-013445700
  • Communication port(s):
    EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
  • Controller type:
    Machine Control
  • Cooling method:
    Active cooling (fan)
  • Degree of protection (IP), front side:
    IP65
  • Display ratio:
    16:9
  • Expansion slot:
    No Expansion
  • Height of panel cutout:
    285 mm
  • Height of the front:
    303 mm
  • IPC type:
    Panel PC
  • Material housing:
    Aluminium, black
  • Max. number of motion axes:
    16 axes
  • Memory:
    32 GB RAM (non ECC)
  • Modular port:
    No Port
  • Mounting method:
    Build-in
  • Number of pixels, horizontal:
    1920
  • Number of pixels, vertical:
    1080
  • Operating system:
    Windows 10 IoT Enterprise 2019 LTSB - 64 bit
  • Operating temperature:
    0-55 °C
  • Processor family:
    Intel® Core™ i5
  • Processor specification:
    7440EQ (2.9 GHz)
  • Product Weight (unpacked):
    7000 g
  • Screen diagonal:
    18.5 in
  • Storage:
    256 GB CFast MLC
  • Supply voltage DC:
    20.4-28.8 V
  • Touchscreen technology:
    Projected capacitive
  • Type of display:
    TFT
  • Video output:
    DVI-I
  • Width of panel cutout:
    463 mm
  • Width of the front:
    481 mm
По запросу
Доступно к заказу

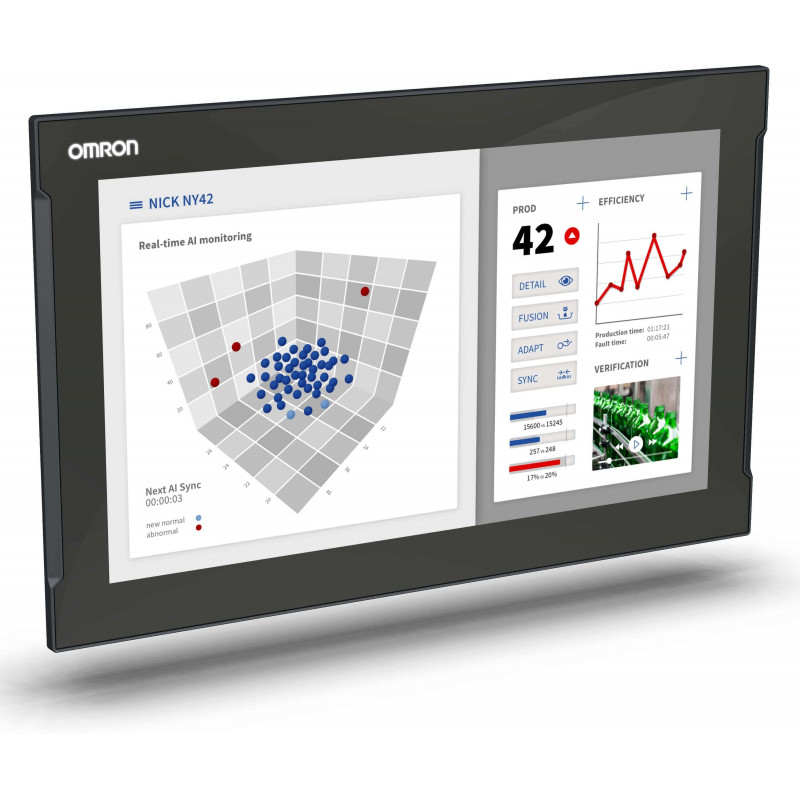

Контроллер станка для 16 осей, промышленный панельный ПК с процессором Intel® Core™ i5-7440EQ, 32 ГБ ОЗУ (без ECC), 256 ГБ CFast MLC, Windows 10 IoT Enterprise 2019 LTSC — 64 бит, 18,5 дюйма; (1920x1080) дисплей с емкостным сенсорным экраном
