- Производитель:
- Артикул:NX1P2-9024DT
- 99
- Communication option(s):Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
- Input type:PNP/NPN
- Max. number of expansion units:8
- Max. number of PTP axes:4
- Max. number of remote I/O nodes:16
- Number of digital inputs:14
- Number of digital outputs:10
- Number of Ethernet ports:2
- Number of serial option boards:1
- Output type:NPN
- Primary task cycle time:2 ms
- Product Depth (unpacked):71 mm
- Product Height (unpacked):100 mm
- Product Weight (unpacked):590 g
- Product Width (unpacked):124 mm
- Program memory:1.5 MB
- Supply voltage DC:20.4-28.8 V
- Variables memory:2 MB

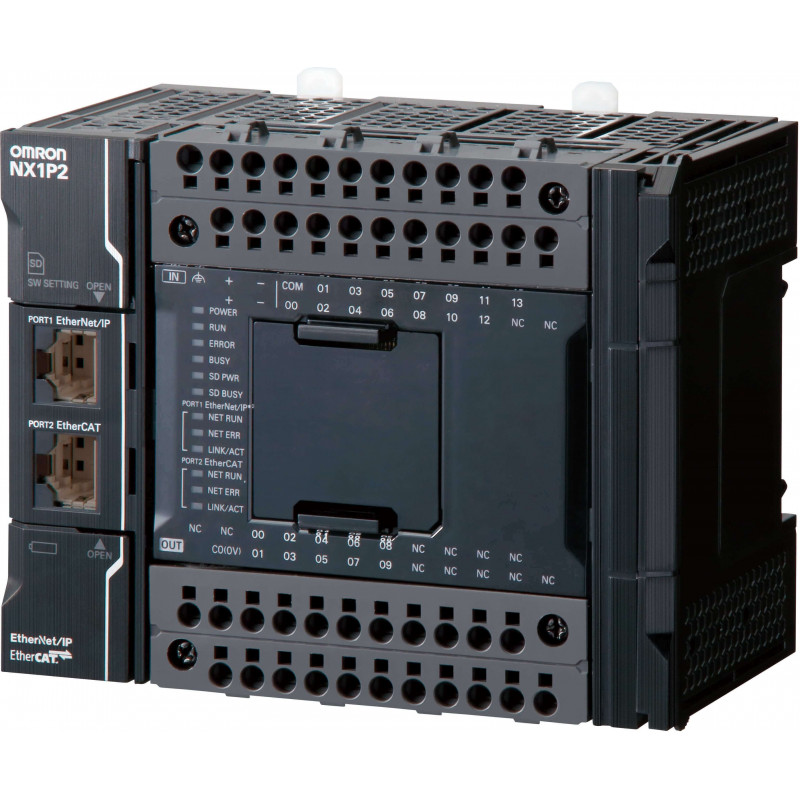

ЦП Sysmac NX1P с 24 цифровыми транзисторными входами/выходами (NPN), памятью 1,5 МБ, EtherCAT (0 сервоосей, 4 оси PTP, 16 узлов EtherCAT), EtherNet/IP и 1 дополнительным последовательным портом
