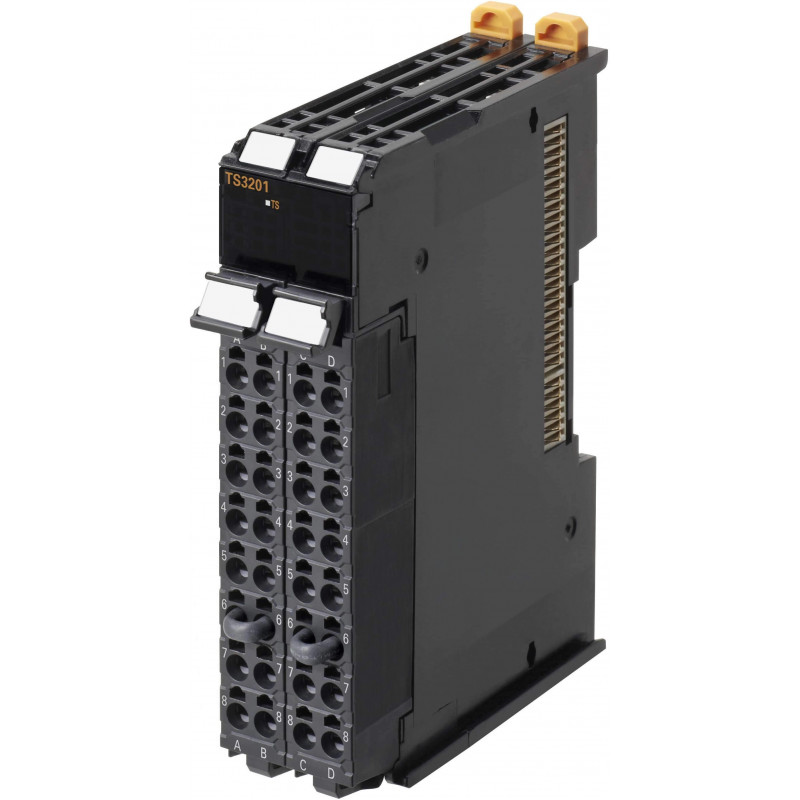

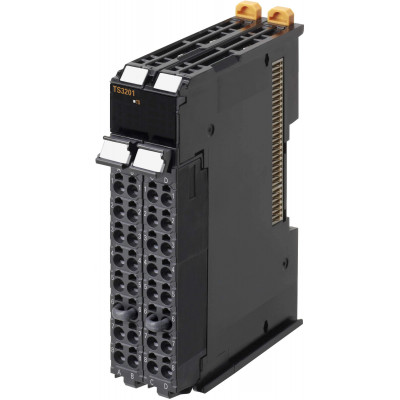

- Артикул:NX-TS3201
- 99
- Conversion time:250 ms/unit
- Degree of protection (IP):IP20
- I/O connection type:Push-in
- I/O system:NX I/O Bus
- Input circuit type:Single-ended
- Linear analog input type:None
- Linear analog output type:None
- Number of analog inputs:4
- Number of I/O connectors:2
- Product Depth (unpacked):80 mm
- Product Height (unpacked):100 mm
- Product Weight (unpacked):140 g
- Product Width (unpacked):24 mm
- Resolution of the analog inputs:14 Bit
- Signal processing:Free running
- SIL according to IEC 61508:None
- Temperature input type:Pt100, Pt1000
- Type of module:Analog I/O
4 входа для датчиков температуры, Pt100 (3-проводной), Pt1000, разрешение 0,1 °C, 250 мс/шт., безвинтовые разъемы push-in, ширина 24 мм
