- Производитель:
- Артикул:NJ501-1420
- 99
- Communication option(s):CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):EtherCAT Master, EtherNet/IP, USB
- Controller functionality:DB connection, Motion control, Sequence control
- I/O system:CJ I/O Bus
- Max. number of axes (incl. virtual):32
- Max. number of expansion units:40
- Max. number of remote I/O nodes:192
- Max. number of synchronous axes:32
- Primary task cycle time:0.5 ms
- Product Depth (unpacked):150 mm
- Product Height (unpacked):96 mm
- Product Weight (unpacked):550 g
- Product Width (unpacked):90 mm
- Program memory:20 MB
- Variables memory:6 MB

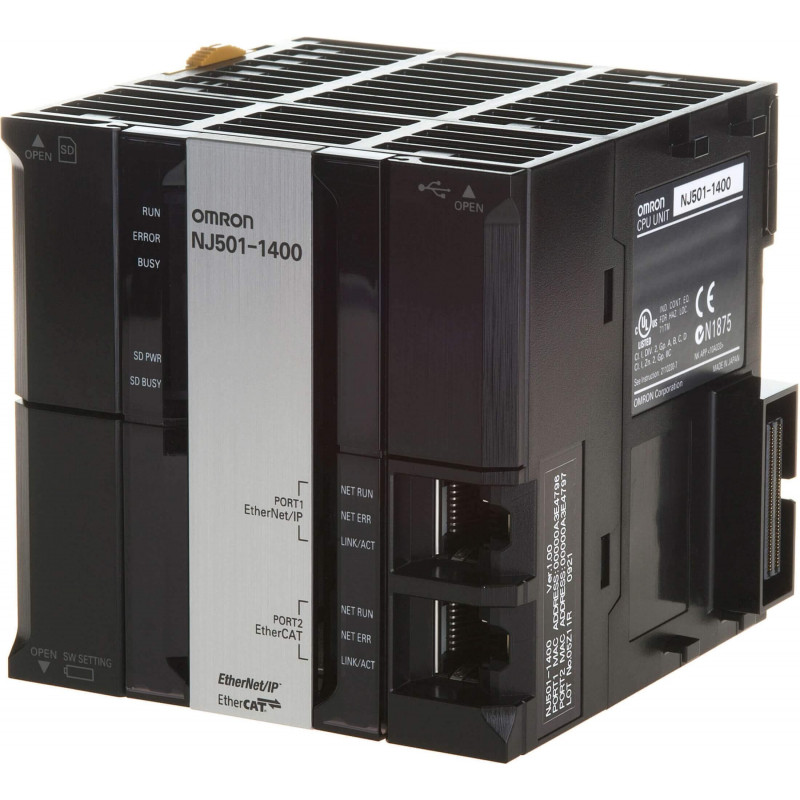

ЦП Sysmac NJ5 с возможностью подключения к базе данных, памятью 20 МБ, встроенным EtherCAT (32 сервооси, всего 192 узла EtherCAT) и EtherNet/IP
