- Производитель:
- Артикул:NJ301-1100
- 99
- Communication option(s):CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):EtherCAT Master, EtherNet/IP, USB
- Controller functionality:Motion control, Sequence control
- I/O system:CJ I/O Bus
- Max. number of axes (incl. virtual):15
- Max. number of expansion units:40
- Max. number of remote I/O nodes:192
- Max. number of synchronous axes:4
- Primary task cycle time:0.5 ms
- Product Depth (unpacked):150 mm
- Product Height (unpacked):96 mm
- Product Weight (unpacked):530 g
- Product Width (unpacked):90 mm
- Program memory:5 MB
- Variables memory:2.5 MB

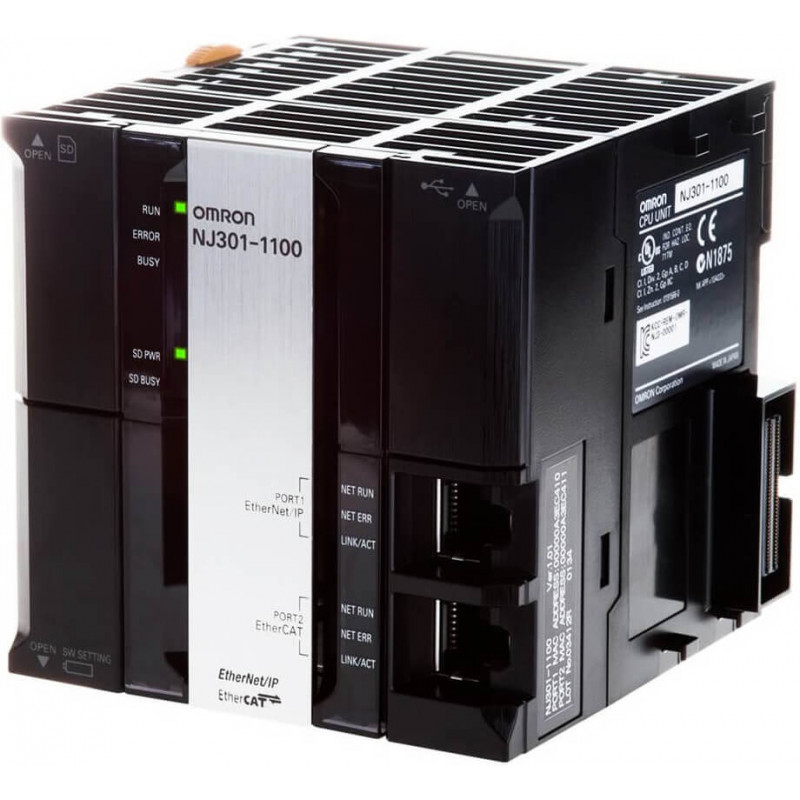

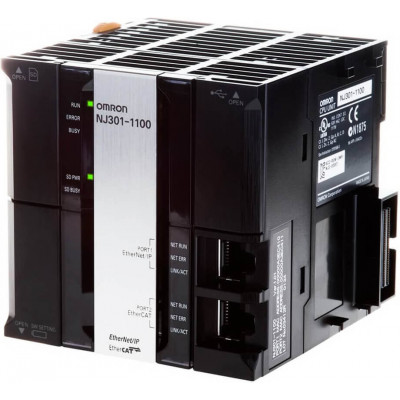

ЦП Sysmac NJ3, память 5 МБ, встроенный EtherCAT (4 сервооси, всего 192 узла EtherCAT) и EtherNet/IP
