- Производитель:
- Артикул:G3PE-545B-3 12-24VDC
- 99
- Applicable heater capacity (AC1: resistive load):37.4 kW
- Application:ON/OFF control
- Control current max.:10 mA
- Isolation:Phototriac
- Maximum operating temperature:80 °C
- Minimum operating temperature:-30 °C
- Mounting method:Screw
- Must operate voltage max.:9.6 V
- Must release voltage min.:1 V
- Number of phases:3
- Number of poles:3
- Operating voltage range, AC:180-528 V
- Permissible I²t value:1260 A²s
- Product Depth (unpacked):105 mm
- Product Height (unpacked):190.5 mm
- Product Width (unpacked):130.5 mm
- Rated operation current Ie at AC-1:45 A
- Rated operational voltage, AC:200-480 V
- Supply voltage DC:12-24 V
- Terminal:Screw

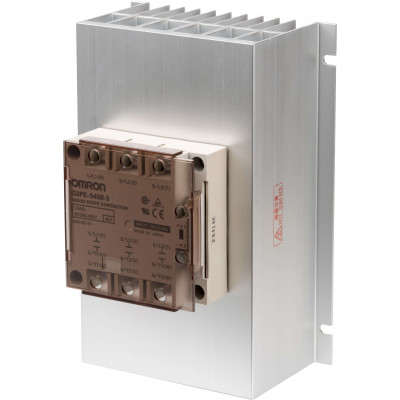

Твердотельное реле, 3-полюсное, винтовое крепление, 45 А, макс. 528 В переменного тока
