- Производитель:
- Артикул:G3PA-420B-VD-2 12-24VDC
- 99
- Application:ON/OFF control
- Control current max.:7 mA
- Isolation:Phototriac
- Maximum operating temperature:80 °C
- Minimum operating temperature:-30 °C
- Mounting method:DIN rail
- Must operate voltage max.:9.2 V
- Must release voltage min.:1 V
- Number of phases:1
- Number of poles:1
- Operating voltage range, AC:180-528 V
- Permissible I²t value:1800 A²s
- Product Depth (unpacked):100 mm
- Product Height (unpacked):100 mm
- Product Width (unpacked):37 mm
- Rated load current Close mounting:16 A
- Rated operation current Ie at AC-1:20 A
- Rated operational voltage, AC:200-480 V
- Supply voltage DC:12-24 V
- Terminal:Screw

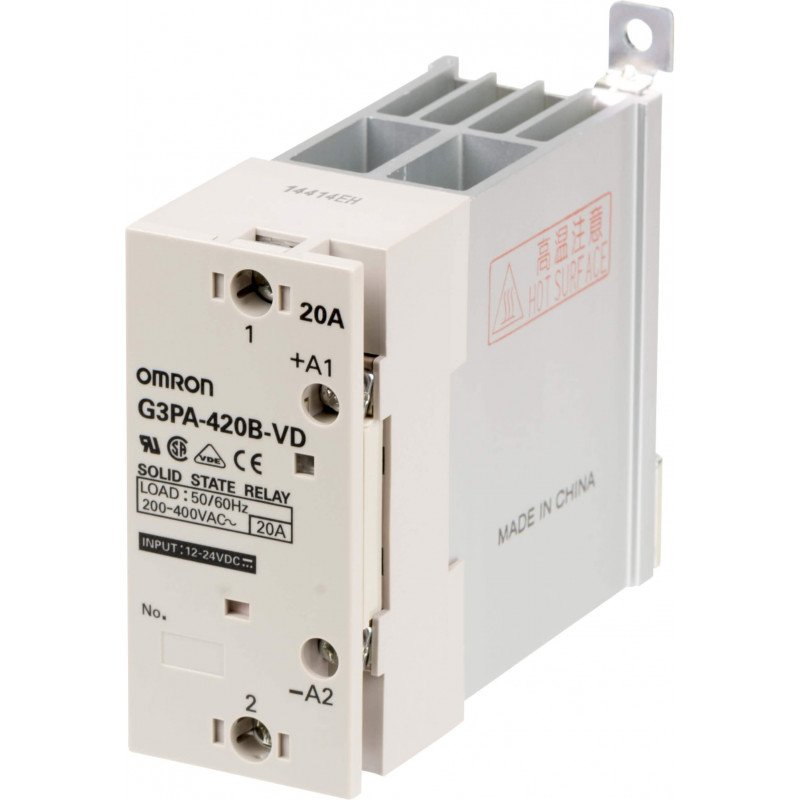

Твердотельное реле, DIN-рейка/поверхностный монтаж, 1-полюсное, 20 А, макс. 440 В переменного тока
