• Производитель:
    Omron
  • Артикул:
    G3PA-420B-VD 12-24VDC
  • Application:
    ON/OFF control
  • Control current max.:
    7 mA
  • Isolation:
    Phototriac
  • Maximum operating temperature:
    80 °C
  • Minimum operating temperature:
    -30 °C
  • Mounting method:
    DIN rail
  • Must operate voltage max.:
    9.2 V
  • Must release voltage min.:
    1 V
  • Number of phases:
    1
  • Number of poles:
    1
  • Operating voltage range, AC:
    180-440 V
  • Permissible I²t value:
    260 A²s
  • Product Depth (unpacked):
    100 mm
  • Product Height (unpacked):
    100 mm
  • Product Width (unpacked):
    37 mm
  • Rated load current Close mounting:
    16 A
  • Rated operation current Ie at AC-1:
    20 A
  • Rated operational voltage, AC:
    180-400 V
  • Supply voltage DC:
    12-24 V
  • Terminal:
    Screw
По запросу
Доступно к заказу

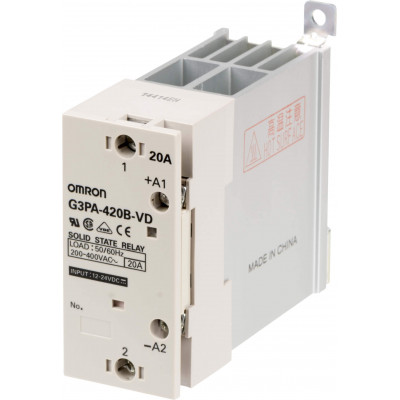

Твердотельное реле, DIN-рейка/поверхностный монтаж, 1-полюсное, 20 А, макс. 440 В переменного тока
