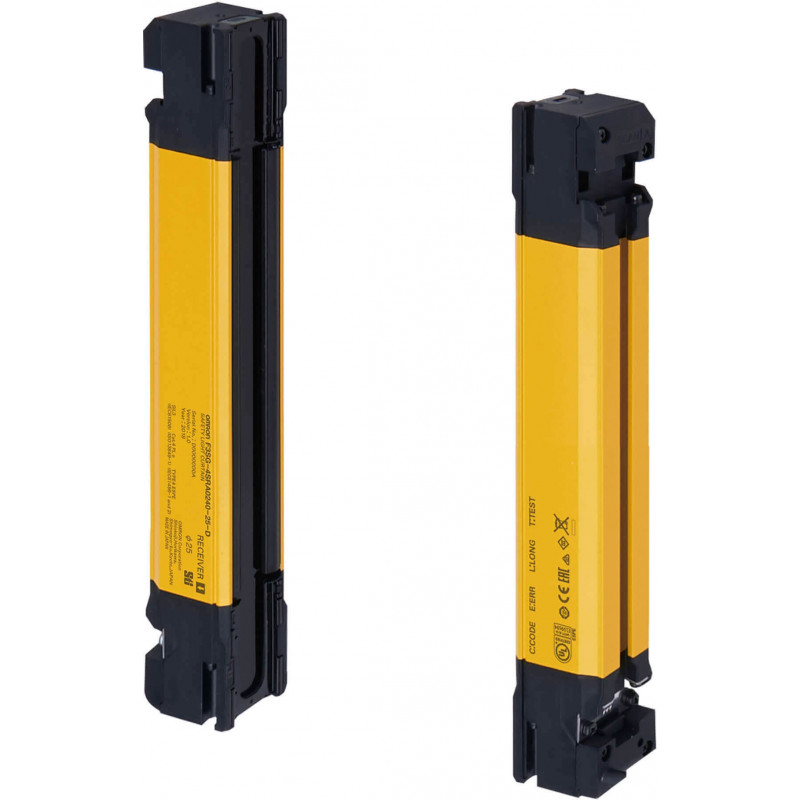

Купить F3SG-4SRA0160-25 F3SG-SR/PG Omron F3SG-4SRA0160-25 по лучшей цене в наличии и под заказ

Производитель:
Omron
Артикул:
F3SG-4SRA0160-25
99
Ambient temperature:
-30-55 °C
Beam spacing:
20 mm
Communication option(s):
Bluetooth, IO-Link, USB
Connection method:
Root connector (order separately)
Degree of protection (IP):
IP65/IP67/IP67G
Detection capability:
25 mm
Height of sensor:
38 mm
Key features:
Area Beam Indicator, Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Vibration detection, Warning zone
Max. output current at protected output:
300 mA
Maximum safety range:
20 m
Minimum operating distance:
0.3 m
Number of adjustable side-mount brackets:
1
Number of beams:
8
Number of fixed side-mount brackets:
2
Number of protected semiconductor outputs:
2
Number of semiconductor outputs with signalling function:
1
Overall length:
160 mm
Response time:
8 ms
Safety field height:
160 mm
Scope of delivery:
Transmitter and receiver
Sensing method:
Safety light curtain
Supply voltage DC:
19.2-28.8 V
Type of protection:
Hand protection
Type of safety according to IEC 61496-1:
4
Type of switching output of the OSSD:
PNP/NPN
Wavelength of the sensor:
870 nm
Width of sensor:
32 mm
