- Производитель:
- Артикул:F3SG-4RA1200-14
- 99
- Ambient temperature:-10-55 °C
- Beam gap:10 mm
- Communication port(s):USB
- Connection method:M12 pigtail Smartclick connector
- Degree of protection (IP):IP67
- Detection capability:14 mm
- Height of sensor:35 mm
- Max. output current at protected output:300 mA
- Maximum safety range:10 m
- Minimum operating distance:0.3 m
- Number of beams:119
- Number of protected semiconductor outputs:2
- Number of semiconductor outputs with signalling function:1
- Overall length:1248 mm
- Response time:13 ms
- Safety field height:1200 mm
- Scope of delivery:Transmitter and receiver
- Supply voltage DC:19.2-28.8 V
- Type of protection:Finger protection
- Type of safety according to IEC 61496-1:4
- Type of switching output of the OSSD:PNP/NPN
- Voltage type:DC
- Wavelength of the sensor:870 nm
- Width of sensor:35 mm

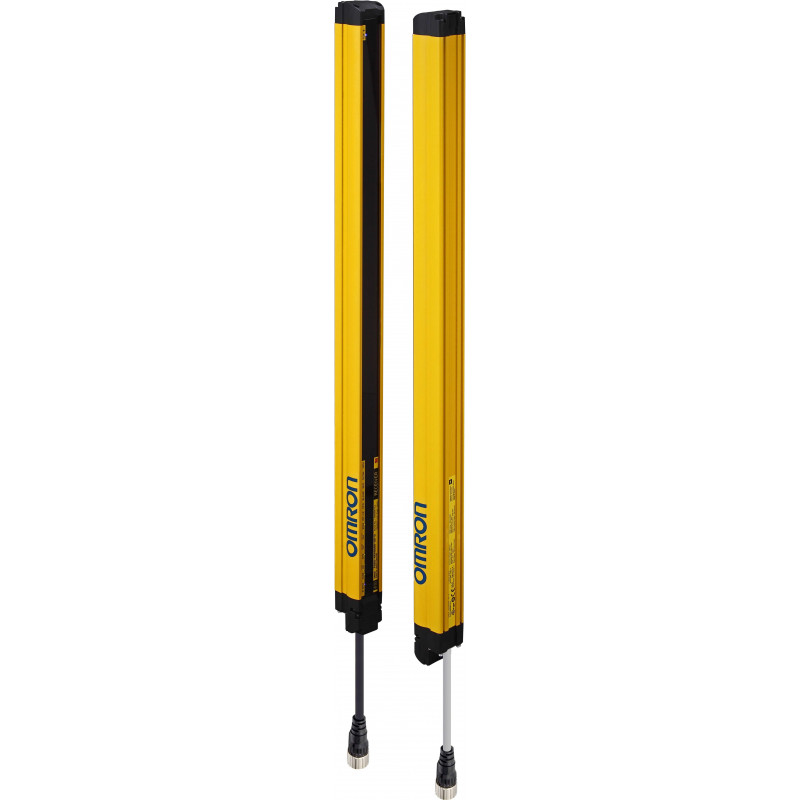

Датчик безопасности, F3SG-R Advanced, тип 4, разрешение 14 мм, диапазон от 0,3 до 10,0 м, высота 1200 мм, PNP/NPN
