- Производитель:
- Артикул:F3SG-4PGA1070-4A
- 99
- Ambient temperature:-30-55 °C
- Beam spacing:300 mm
- Communication option(s):Bluetooth, IO-Link, USB
- Connection method:Root connector (order separately)
- Degree of protection (IP):IP65/IP67
- Key features:Active/active, Area Beam Indicator, Auxiliary output, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, PNP/NPN selection, Response time adjustment
- Max. output current at protected output:300 mA
- Maximum safety range:20 m
- Minimum operating distance:0.5 m
- Number of adjustable side-mount brackets:2
- Number of beams:4
- Number of fixed side-mount brackets:2
- Number of intermediate brackets:1
- Number of protected semiconductor outputs:2
- Number of semiconductor outputs with signalling function:1
- Response time:8 ms
- Safety field height:1070 mm
- Scope of delivery:Transmitter and receiver
- Sensing method:Safety multi-beam
- Type of protection:Body protection
- Type of safety according to IEC 61496-1:4
- Type of switching output of the OSSD:PNP/NPN
- Wavelength of the sensor:870 nm

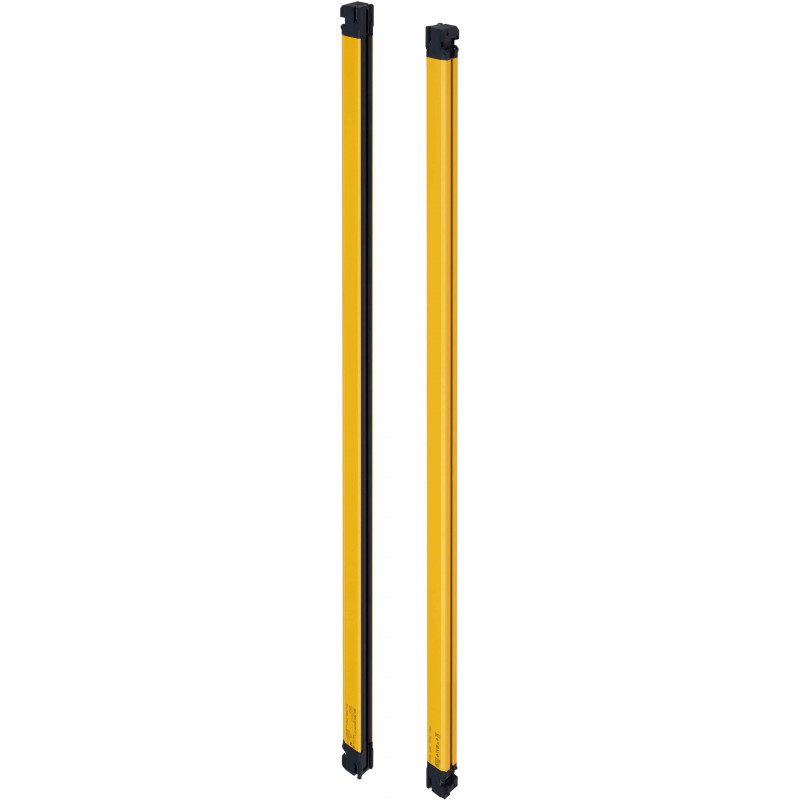

Safety Multi-Light Beam, F3SG-PG Охрана периметра, Тип 4, 4 луча, дальность действия от 0,5 до 20 м, длина изделия 1070 мм, Активный/активный
