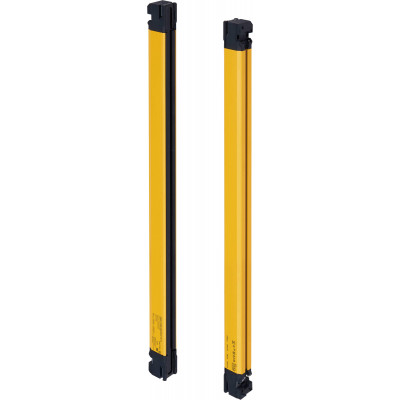

Купить F3SG-4PGA0670-2A F3SG-SR/PG Omron F3SG-4PGA0670-2A по лучшей цене в наличии и под заказ

Производитель:
Omron
Артикул:
F3SG-4PGA0670-2A
99
Ambient temperature:
-30-55 °C
Beam spacing:
500 mm
Communication option(s):
Bluetooth, IO-Link, USB
Connection method:
Root connector (order separately)
Degree of protection (IP):
IP65/IP67
Key features:
Active/active, Area Beam Indicator, Auxiliary output, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, PNP/NPN selection, Response time adjustment
Max. output current at protected output:
300 mA
Maximum safety range:
20 m
Minimum operating distance:
0.5 m
Number of adjustable side-mount brackets:
2
Number of beams:
2
Number of fixed side-mount brackets:
2
Number of protected semiconductor outputs:
2
Number of semiconductor outputs with signalling function:
1
Response time:
8 ms
Safety field height:
670 mm
Scope of delivery:
Transmitter and receiver
Sensing method:
Safety multi-beam
Type of protection:
Body protection
Type of safety according to IEC 61496-1:
4
Type of switching output of the OSSD:
PNP/NPN
Wavelength of the sensor:
870 nm
