- Производитель:
- Артикул:F3SG-2RE0510P30
- 99
- Ambient temperature:-10-55 °C
- Beam gap:20 mm
- Connection method:M12 pigtail Smartclick connector
- Degree of protection (IP):IP67
- Detection capability:30 mm
- Height of sensor:35 mm
- Key features:Fast response (ON/OFF applications), Simple wiring
- Max. output current at protected output:300 mA
- Maximum safety range:20 m
- Minimum operating distance:0.3 m
- Number of beams:24
- Number of protected semiconductor outputs:2
- Overall length:528 mm
- Response time:5 ms
- Safety field height:510 mm
- Scope of delivery:Transmitter and receiver
- Supply voltage DC:19.2-28.8 V
- Type of protection:Hand protection
- Type of safety according to IEC 61496-1:2
- Type of switching output of the OSSD:PNP
- Voltage type:DC
- Wavelength of the sensor:870 nm
- Width of sensor:35 mm

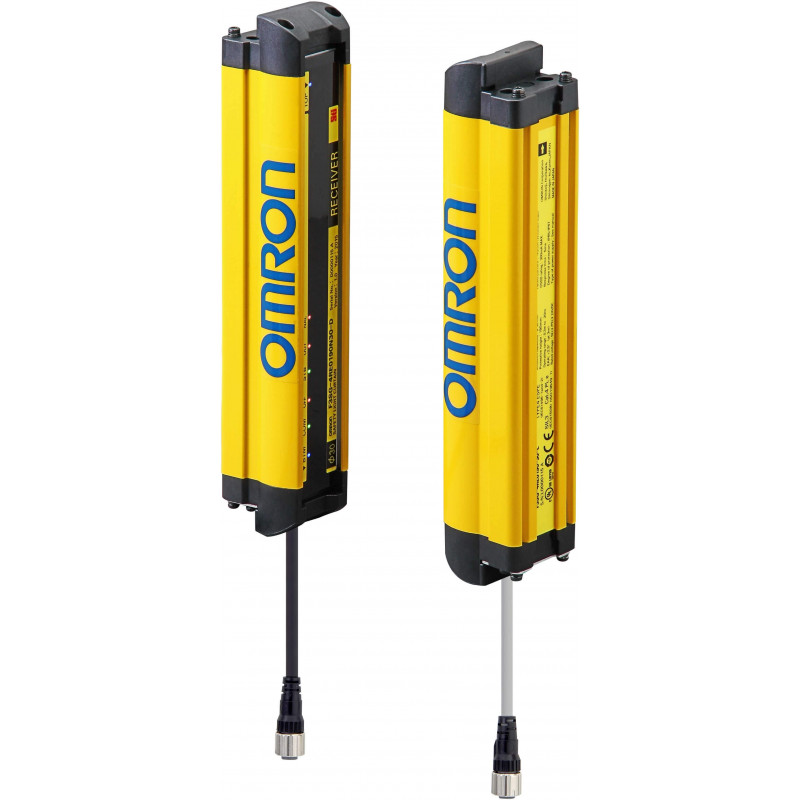

Датчик безопасности, F3SG-R Easy, тип 2, разрешение 30 мм, диапазон от 0,3 до 20,0 м, высота 510 мм, PNP
