• Производитель:
    Omron
  • Артикул:
    F3SG-2RE0430P30
  • Ambient temperature:
    -10-55 °C
  • Beam gap:
    20 mm
  • Connection method:
    M12 pigtail Smartclick connector
  • Degree of protection (IP):
    IP67
  • Detection capability:
    30 mm
  • Height of sensor:
    35 mm
  • Key features:
    Fast response (ON/OFF applications), Simple wiring
  • Max. output current at protected output:
    300 mA
  • Maximum safety range:
    20 m
  • Minimum operating distance:
    0.3 m
  • Number of beams:
    20
  • Number of protected semiconductor outputs:
    2
  • Overall length:
    448 mm
  • Response time:
    5 ms
  • Safety field height:
    430 mm
  • Scope of delivery:
    Transmitter and receiver
  • Supply voltage DC:
    19.2-28.8 V
  • Type of protection:
    Hand protection
  • Type of safety according to IEC 61496-1:
    2
  • Type of switching output of the OSSD:
    PNP
  • Voltage type:
    DC
  • Wavelength of the sensor:
    870 nm
  • Width of sensor:
    35 mm
По запросу
Доступно к заказу

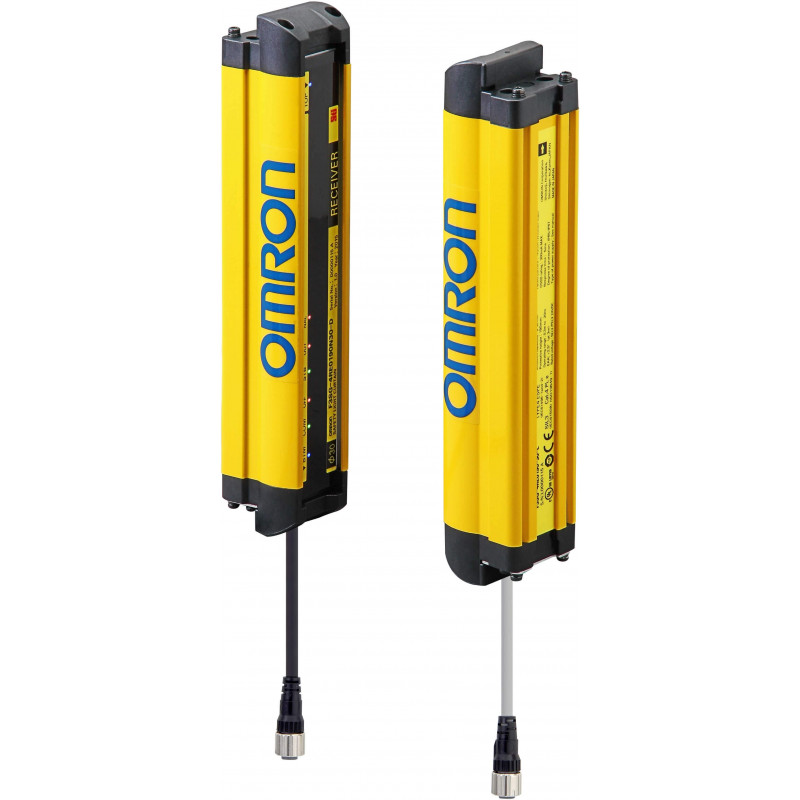

Датчик безопасности, F3SG-R Easy, тип 2, разрешение 30 мм, диапазон от 0,3 до 20,0 м, высота 430 мм, PNP
