- Производитель:

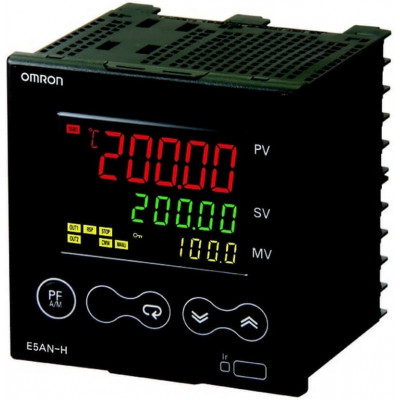

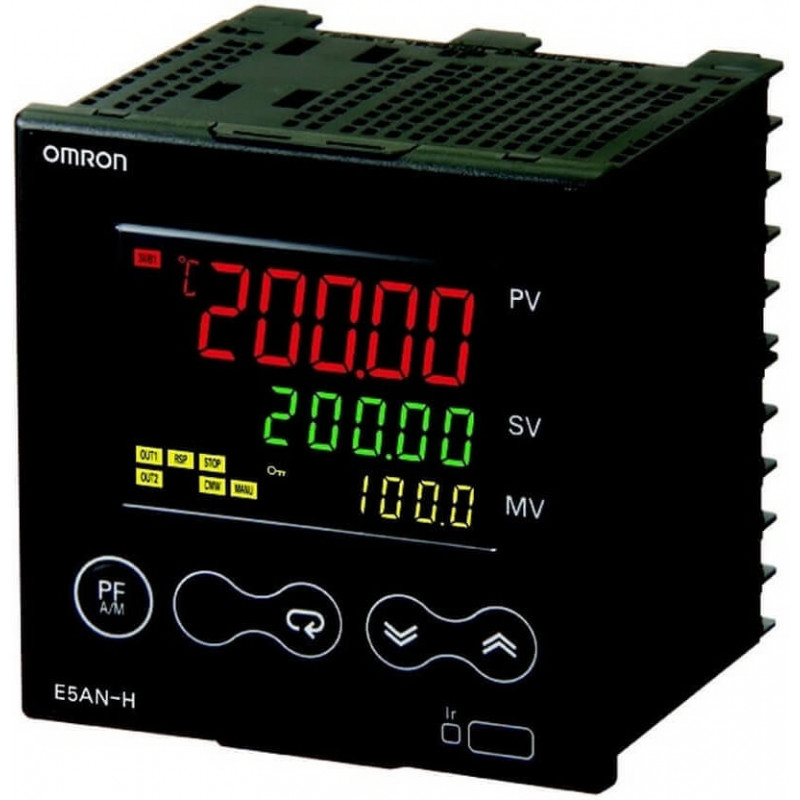

- Артикул:E5AN-HAA2HHBFM-500 100-240 VAC
- 99
- Control output:Linear current, Linear voltage, Relay, Voltage pulse
- Features:Remote SP, Transfer output
- Functions:HB/HS alarm for 3-phase heaters, ON/OFF control, PID control
- Linear analog input type:0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- Number of alarm outputs:2
- Number of control loops:1
- Number of event inputs:2
- Size:1/4 DIN (96 x 96 mm)
- Supply voltage AC:100-240 V
- Temperature input type:B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
- Temperature range:-200-2300 °C
- Terminal:Screw
Темп. контроллер, PROplus, 1/4 DIN, (96 x 96) мм, 2 x OUT, 2 x Aux OUT, HT Burnout SSR Fail./3Phs., Event I/P & Трансф. ВЫХОД, дополнительный блок, клеммная коробка, 100–240 В переменного тока
