- Производитель:
- Артикул:D41D-2CD-025N2
- 99
- Auxiliary monitoring output:PNP type, short-circuit proof
- Cable exit direction:Bottom
- Coding:Unique
- Connection method:M12 pigtail connector
- Degree of protection (IP):IP65/IP67
- Door contacts NC:2
- Door contacts NO:1
- Door switch type:Non-contact, RFID coded
- LED indicators:Actuator detected (yellow)
- Material housing:PBT
- Max. differential travel:20 %
- Max. operating distance ON to OFF:18 mm
- Min. operating distance OFF to ON:10 mm
- Mounting method:M4 screws
- Number of auxiliary outputs:1
- Number of connectable switches:30 max. (wiring length: 100 m max.)
- Number of OSSD:2
- Output type:PNP
- Shape:Rectangular compact
- Vibration resistance:10 to 55 Hz, amplitude 1.0 mm

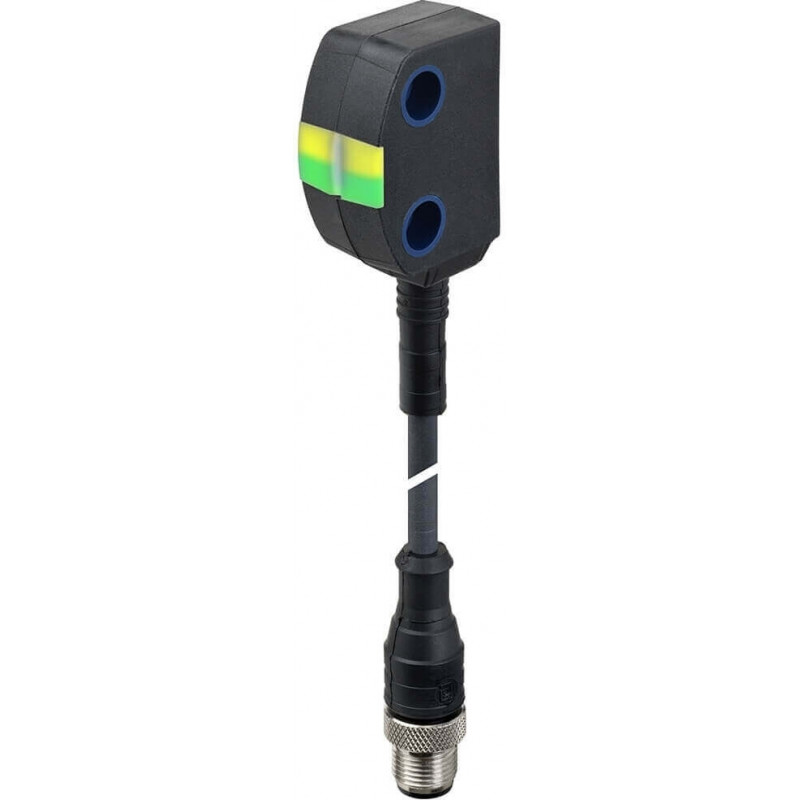

Бесконтактный блокировочный переключатель, RFID с высокой кодировкой, PNP, тестовый импульс, косичка с разъемом M12, 8-полюсный
