- Производитель:
- Артикул:D40Z-1C5-S
- 99
- Ambient temperature (operating):-10-65 °C
- Auxiliary monitoring output:Photocoupler output: 24 V DC, load current: 10 mA
- Cable length:5 m
- Degree of protection (IP):IP67
- LED indicators:Actuator detected (yellow), Actuator not detected (red)
- Material housing:PBT
- Max. differential travel:20 %
- Max. operating distance ON to OFF:15 mm
- Max. power consumption:0.5 W
- Min. operating distance OFF to ON:5 mm
- Min. shock resistance:300 m/s²
- Mounting method:M4 screws
- Number of connectable switches:30 max. (wiring length: 100 m max.)
- Vibration resistance:10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm)

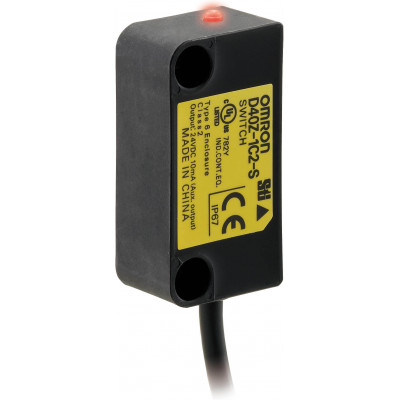

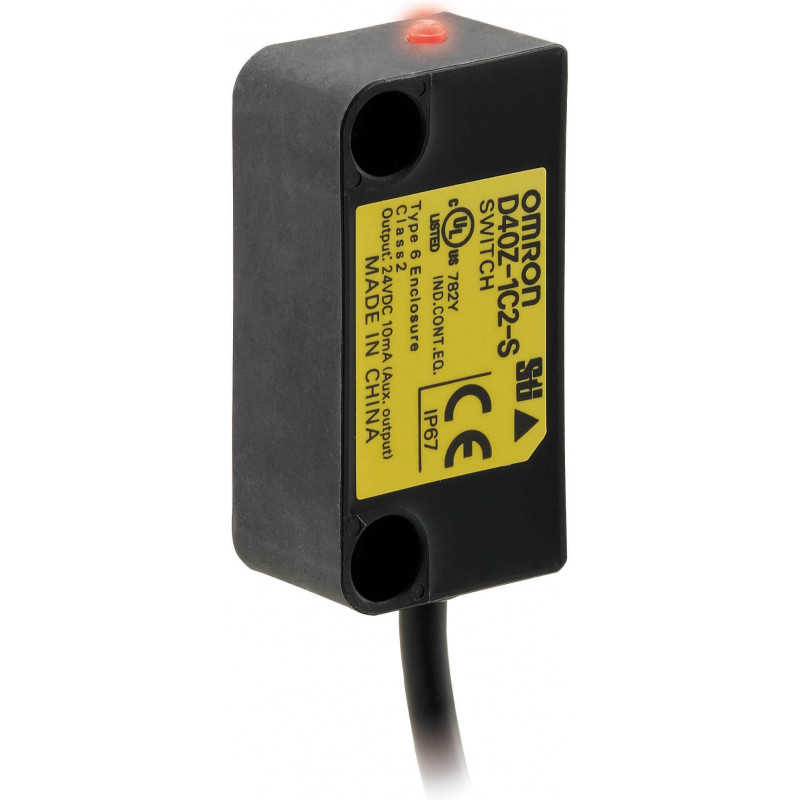

Безопасный бесконтактный дверной выключатель, Cat 4/Ple, кабель 5 м, только выключатель
