- Производитель:
- Артикул:CP2E-S40DT-D
- 99
- Built-in auxiliary 24 VDC output:0 mA
- Communication option(s):CompoBus/S Slave
- Communication port(s):Serial RS-232C, Serial RS-485, USB
- Data memory capacity:8 K words
- Input type:PNP/NPN
- Logic execution time:0.23 µs
- Max. encoder input frequency:100 kHz
- Max. number of analogue I/O channels:24
- Max. number of expansion units:3
- Max. number of local I/O points:160
- Max. number of PTP axes:2
- Max. pulse output frequency:100 kHz
- Number of digital inputs:24
- Number of digital outputs:16
- Number of encoder input channels:6
- Number of RS-232 ports:1
- Number of RS-485 ports:1
- Number of USB ports:1
- Operating temperature range:-20-60 °C
- Output type:NPN
- Product Depth (unpacked):80 mm
- Product Height (unpacked):90 mm
- Product Width (unpacked):150 mm
- Program capacity:16 K steps
- Supply voltage type:DC

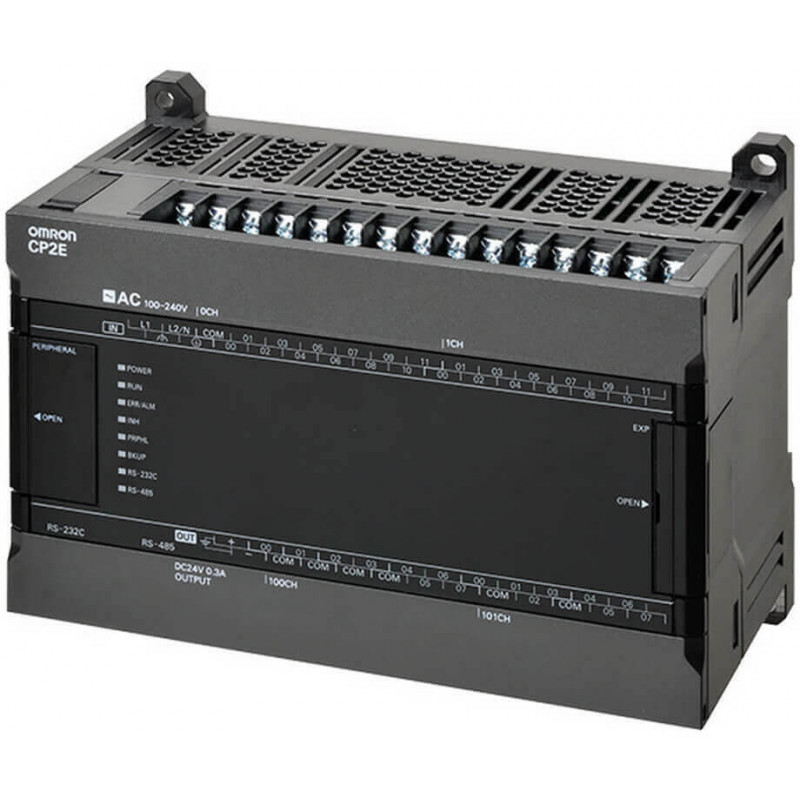

Компактный ПЛК серии CP2E — стандартный тип; 24 ДИ, 16 ДО; NPN-выход; Источник питания 24 В постоянного тока; Память программ на 8 тыс. шагов
