- Производитель:
- Артикул:CP2E-N20DT1-D
- 99
- Built-in auxiliary 24 VDC output:0 mA
- Communication option(s):Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):Ethernet TCP/IP
- Data memory capacity:16 K words
- Input type:PNP/NPN
- Logic execution time:0.23 µs
- Max. encoder input frequency:100 kHz
- Max. number of analogue I/O channels:4
- Max. number of local I/O points:20
- Max. number of PTP axes:2
- Max. pulse output frequency:100 kHz
- Number of digital inputs:12
- Number of digital outputs:8
- Number of encoder input channels:6
- Number of Ethernet ports:1
- Operating temperature range:-20-60 °C
- Output type:PNP
- Product Depth (unpacked):80 mm
- Product Height (unpacked):90 mm
- Product Width (unpacked):86 mm
- Program capacity:20 K steps
- Supply voltage type:DC

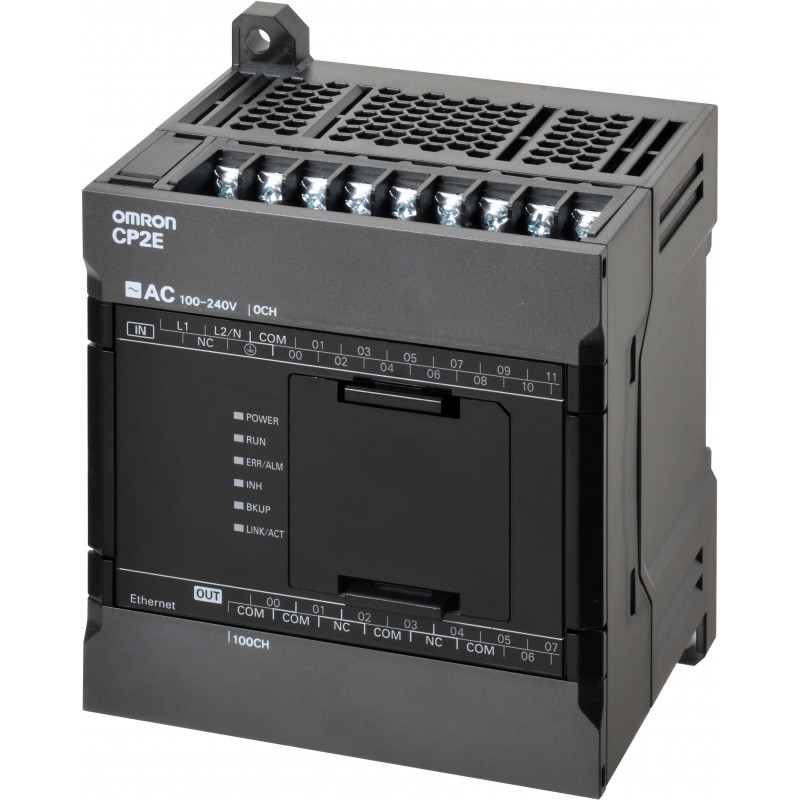

Компактный ПЛК серии CP2E — сетевой тип; 12 ДИ, 8ДО; ПНП-выход; Источник питания 24 В постоянного тока; Память программ на 10 тыс. шагов
