- Производитель:
- Артикул:CP2E-E30DR-A
- 99
- Built-in auxiliary 24 VDC output:300 mA
- Communication option(s):CompoBus/S Slave
- Communication port(s):Serial RS-232C, USB
- Data memory capacity:4 K words
- Input type:PNP/NPN
- Logic execution time:0.23 µs
- Max. encoder input frequency:100 kHz
- Max. number of analogue I/O channels:24
- Max. number of expansion units:3
- Max. number of local I/O points:150
- Max. pulse output frequency:0 kHz
- Number of digital inputs:18
- Number of digital outputs:12
- Number of encoder input channels:6
- Number of RS-232 ports:1
- Number of USB ports:1
- Operating temperature range:-20-60 °C
- Output type:Relay
- Product Depth (unpacked):80 mm
- Product Height (unpacked):90 mm
- Product Width (unpacked):130 mm
- Program capacity:8 K steps
- Supply voltage type:AC

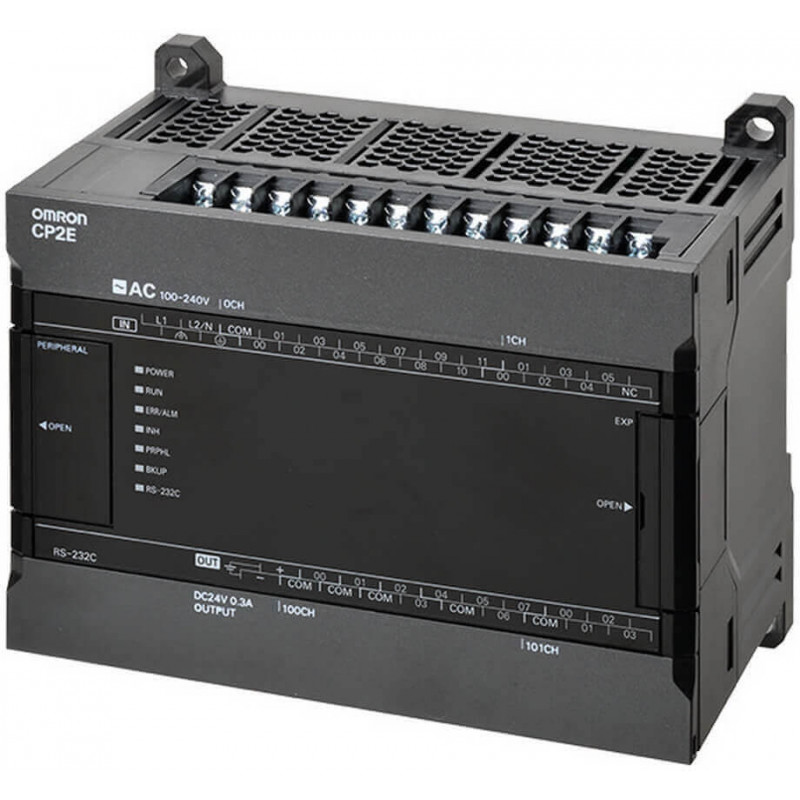

Компактный ПЛК серии CP2E — Essential Type; 18 ДИ, 12ДО; Релейный выход; Электропитание 220 В переменного тока; Память программ на 4 тыс. шагов
