- Производитель:

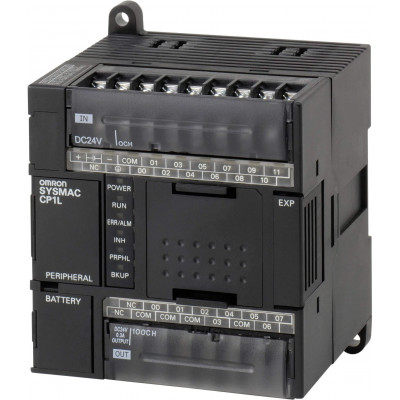

- Артикул:CP1L-L14DT1-D
- 99
- Built-in auxiliary 24 VDC output:0 mA
- Communication option(s):CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):USB
- Data memory capacity:10 K words
- Input type:PNP/NPN
- Logic execution time:0.55 µs
- Max. encoder input frequency:100 kHz
- Max. number of analogue I/O channels:8
- Max. number of expansion units:1
- Max. number of local I/O points:54
- Max. number of PTP axes:2
- Max. pulse output frequency:100 kHz
- Number of digital inputs:8
- Number of digital outputs:6
- Number of encoder input channels:4
- Number of USB ports:1
- Operating temperature range:0-55 °C
- Output type:PNP
- Product Depth (unpacked):85 mm
- Product Height (unpacked):90 mm
- Product Weight (unpacked):335 g
- Product Width (unpacked):86 mm
- Program capacity:5 K steps
- Supply voltage type:DC
ПЛК, питание 24 В постоянного тока, 8 входов 24 В постоянного тока, 6 выходов PNP 0,3 А, программа на 5 тысяч шагов + память данных на 10 тысяч слов
