- Производитель:
- Артикул:CP1L-EM40DT1-D
- 98
- Built-in auxiliary 24 VDC output:0 mA
- Communication option(s):CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):Ethernet TCP/IP
- Data memory capacity:32 K words
- Input type:PNP/NPN
- Logic execution time:0.55 µs
- Max. encoder input frequency:100 kHz
- Max. number of analogue I/O channels:34
- Max. number of expansion units:3
- Max. number of local I/O points:160
- Max. number of PTP axes:2
- Max. pulse output frequency:100 kHz
- Number of digital inputs:24
- Number of digital outputs:16
- Number of encoder input channels:4
- Number of Ethernet ports:1
- Operating temperature range:0-55 °C
- Output type:PNP
- Product Depth (unpacked):85 mm
- Product Height (unpacked):90 mm
- Product Weight (unpacked):515 g
- Product Width (unpacked):150 mm
- Program capacity:20 K steps
- Supply voltage type:DC

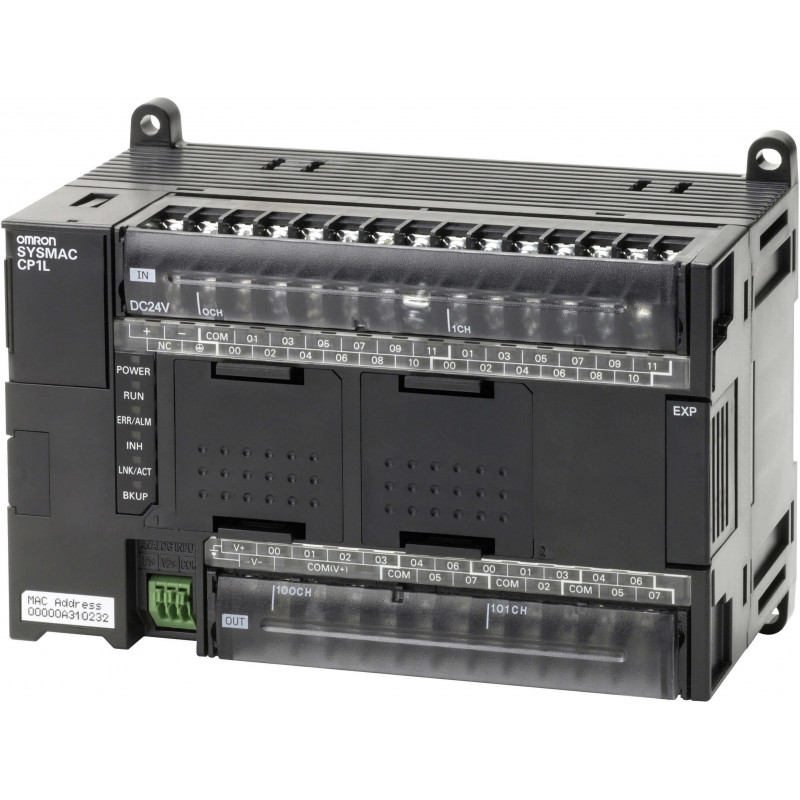

ПЛК, питание 24 В постоянного тока, 24 входа 24 В постоянного тока, 16 выходов PNP 0,3 А, 2 аналоговых входа, программа на 10 000 шагов + память данных на 32 000 слов, 1 порт Ethernet
