- Производитель:

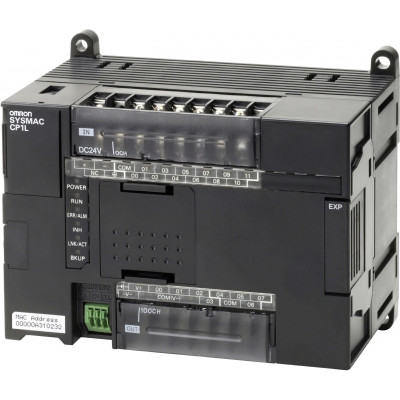

- Артикул:CP1L-EL20DR-D
- 99
- Built-in auxiliary 24 VDC output:0 mA
- Communication option(s):CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):Ethernet TCP/IP
- Data memory capacity:10 K words
- Input type:PNP/NPN
- Logic execution time:0.55 µs
- Max. encoder input frequency:100 kHz
- Max. number of analogue I/O channels:14
- Max. number of expansion units:1
- Max. number of local I/O points:60
- Max. pulse output frequency:0 kHz
- Number of digital inputs:12
- Number of digital outputs:8
- Number of encoder input channels:4
- Number of Ethernet ports:1
- Operating temperature range:0-55 °C
- Output type:Relay
- Product Depth (unpacked):85 mm
- Product Height (unpacked):90 mm
- Product Weight (unpacked):400 g
- Product Width (unpacked):130 mm
- Program capacity:15 K steps
- Supply voltage type:DC
ПЛК, питание 24 В постоянного тока, 12 входов 24 В постоянного тока, 8 релейных выходов 2 А, 2 аналоговых входа, программа на 5 тысяч шагов + память данных на 10 тысяч слов, 1 порт Ethernet
