• Производитель:
    Omron
  • Артикул:

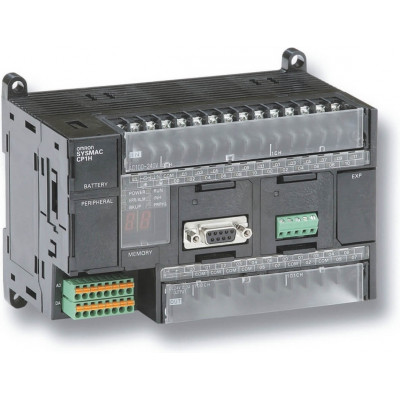

    CP1H-XA40DT1-D
  • Built-in auxiliary 24 VDC output:
    0 mA
  • Communication option(s):
    CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
  • Communication port(s):
    USB
  • Data memory capacity:
    32 K words
  • Input type:
    PNP/NPN
  • Logic execution time:
    0.10 µs
  • Max. encoder input frequency:
    100 kHz
  • Max. number of analogue I/O channels:
    62
  • Max. number of expansion units:
    7
  • Max. number of local I/O points:
    320
  • Max. number of PTP axes:
    4
  • Max. pulse output frequency:
    100 kHz
  • Number of analog inputs:
    4
  • Number of analog outputs:
    2
  • Number of digital inputs:
    24
  • Number of digital outputs:
    16
  • Number of encoder input channels:
    4
  • Number of USB ports:
    1
  • Operating temperature range:
    0-55 °C
  • Output type:
    PNP
  • Product Depth (unpacked):
    85 mm
  • Product Height (unpacked):
    90 mm
  • Product Weight (unpacked):
    600 g
  • Product Width (unpacked):
    150 mm
  • Program capacity:
    20 K steps
  • Supply voltage type:
    DC
По запросу
Доступно к заказу
ПЛК, питание 24 В постоянного тока, 24 входа 24 В постоянного тока, 16 выходов PNP 0,3 А, 4 аналоговых входа, 2 аналоговых выхода, программа на 20 тыс. шагов + память данных на 32 тыс. слов
