- Производитель:

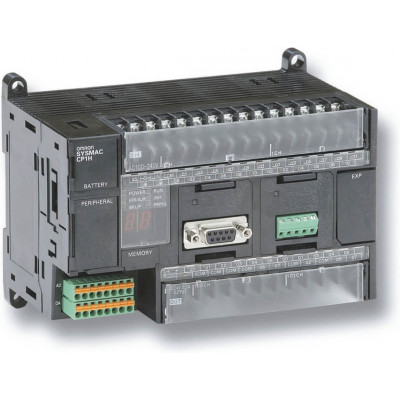

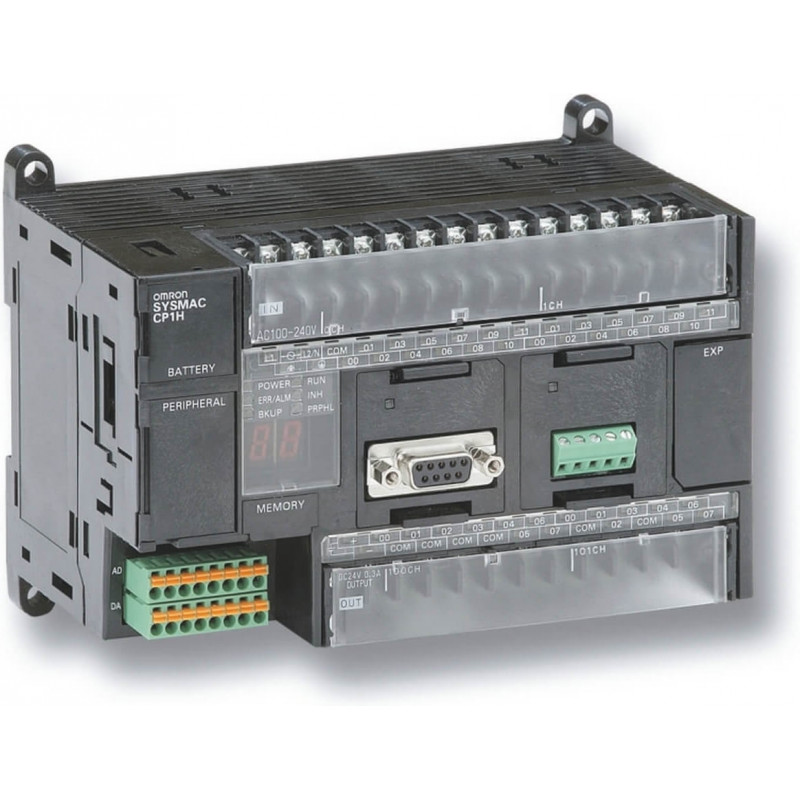

- Артикул:CP1H-XA40DR-A
- 99
- Built-in auxiliary 24 VDC output:300 mA
- Communication option(s):CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
- Communication port(s):USB
- Data memory capacity:32 K words
- Input type:PNP/NPN
- Logic execution time:0.10 µs
- Max. encoder input frequency:100 kHz
- Max. number of analogue I/O channels:62
- Max. number of expansion units:7
- Max. number of local I/O points:320
- Max. pulse output frequency:0 kHz
- Number of analog inputs:4
- Number of analog outputs:2
- Number of digital inputs:24
- Number of digital outputs:16
- Number of encoder input channels:4
- Number of USB ports:1
- Operating temperature range:0-55 °C
- Output type:Relay
- Product Depth (unpacked):85 mm
- Product Height (unpacked):90 mm
- Product Weight (unpacked):750 g
- Product Width (unpacked):150 mm
- Program capacity:20 K steps
- Supply voltage type:AC
ПЛК, питание 100–240 В переменного тока, 24 входа 24 В постоянного тока, 16 релейных выходов 2 А, 4 аналоговых входа, 2 аналоговых выхода, программа на 20 тыс. шагов + память данных на 32 тыс. слов
